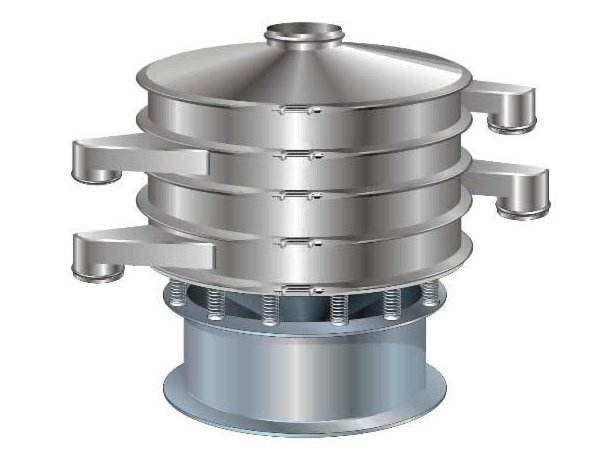

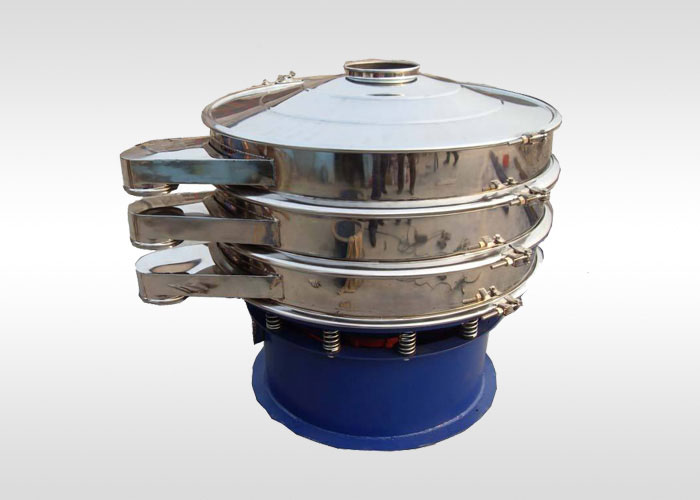

Description:

Rotary vibration sieve provide solutions to different industry’s demand for dependable material separation,grading,impurity.These ideal machines are available for processing Flour,Sugar,Spices chemicals and other dry or liquid filtration.

Working Principle：

XZS series rotary vibration sieve adopts “ the motor rotation” to produce exciting force and make the screen body produce compound rotating vibration,it’s trajectory for a complex three-dimensional curve,adjust the space and position angle of the upper and lower weights,can be effectively changing the movement track of the material,extend or shorten the material residence time on the screen,so as to achieve the ideal screen effect.

Technical Parameter：

Model	Diameter (mm)	Effective Area(㎡）	Mesh Size	Vibtration Time(rpm)	Amplitude	Max Feed Size (mm)	Powder (kw)
GZ-400	0.60	0.23	2-400	1500	1-10	＜20	0.75
	0.80	0.46	2-400	1500	1-10	＜30	0.75
	1.00	0.68	2-400	1500	1-10	＜30	1.50
	1.20	0.95	2-400	1500	1-10	＜30	1.50
	1.50	1.54	2-400	1500	1-10	＜50	2.20
	1.80	2.41	2-400	1500	1-10	＜50	2.20
	2.00	2.95	2-400	1500	1-10	＜60	3.00
	2.50	4.34	2-400	1500	1-10	＜60	3.00

Feature&Benefit:

1.High Efficiency
Under the screen mesh of bouncing ball which can effectively eliminate the blocking of mesh hole and high screening efficiency.
2. Used Abroad
It’s suitable for any powder,grain and mucus materials.
3. Facilitate clean
It’s only takes 3-5Mins to replace and clean the net conveniently.
4. Long Life Service
Can be used with single or multi-layer screen cloth for long life service.
5. Fully Sealed Structure
Fully enclosed structure without dust flying
6.Continuous Operation
Material auto discharge, be able to continuous operation.
7.Easy to operate
Easy operation simple and convenient cleaning ,and also can be directly used on the road.
8..Small Size
Small volume, less space occupation,easy to move,360 degree adjustment of discharge opening.

Application:

Various kinds of the materials can be screened
by the machines including those within 0~400
mesh like dry,wet,refined,coarse,heavy and light
as well as those within 0~600mesh like liquid and
pasty materials.

FAQ

1. What’s row material name?
Bulk density and water content.
2. What's capacity of screw conveyor that you want?
20t/h, 50t/h and 100t/h etc.
3.What’s main purpose of purchasing our machine?
5m, 10m, 15m and 20m etc.
4.How many layer do you need? And what’s mesh size for each layer?
Single layer or Multi-layer is supported to be customized by your requirements.
5.What’s usually Voltage&Frequency  in your city?
Various power voltage:110V 200V 240V 380V 415V 450V 550V
Power Frequency:50HZ 60HZ or Single phase electricity
4.How many layer you need? And what’s mesh size for each layer?
Single layer or Multilayer is supported to be customized by your requirements.
5.What’s material for machine as your need?
A Stainless steel 304
B Carbon steel Q235
C Touching parts SUS304
