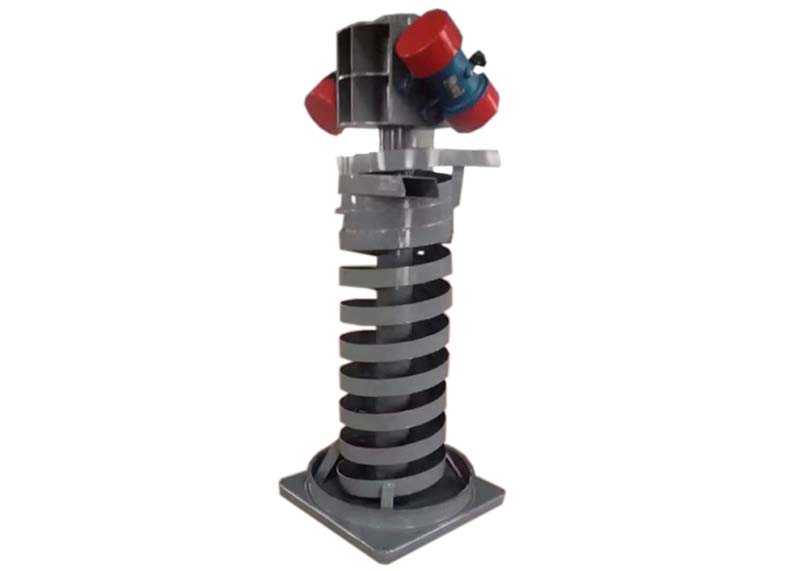

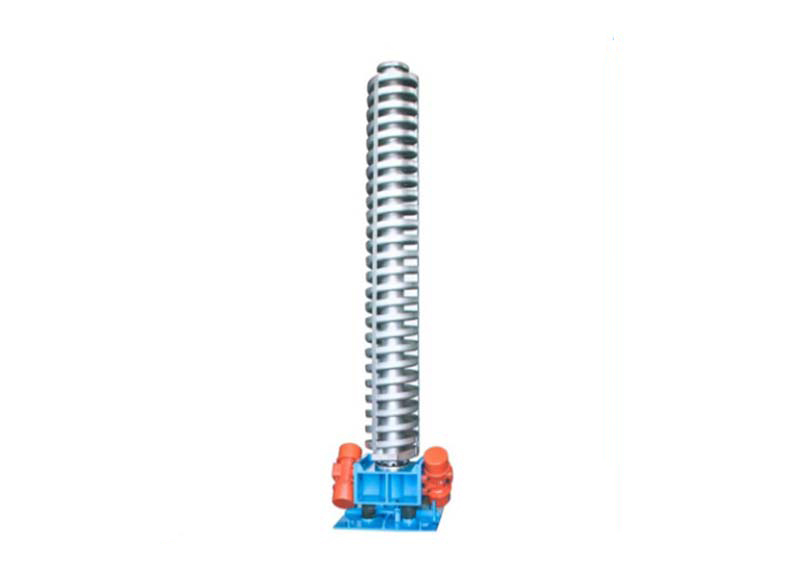

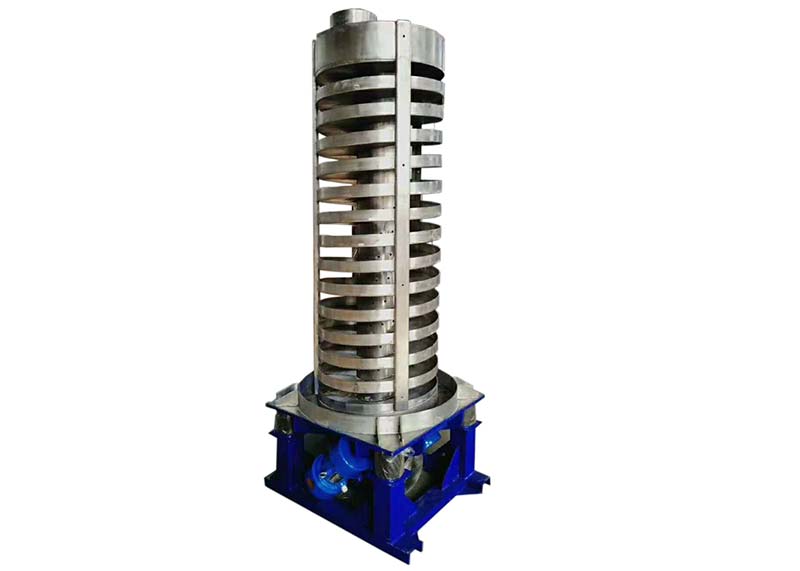

DZC series high quality vertical vibration elevator spiral lift conveyor
Introduction
Vertical vibration elevator is applicable to powder, block and short fiber, widely used in the field of chemical, rubber, plastic, medicine, food, metallurgy, building materials machinery, mining and other industries. It can be made into an open or closed structure according to different production processing requirements.The machine conveys material by down-up and up-down two ways. Closed conveyor can effectively prevent harmful gases and dust from spilling. According to clients' needs , we can change the structure of the machine, so that you can accomplish cooling, drying, screening and other processes while transporting material.
Technical parameters
|
Model
|
Lifting Capability(t/h)
|
Diameter of Spiral chute(mm)
|
Lifting width(mm)
|
Lifting height(m)
|
Speed(rpm)
|
Double amplitude (mm)
|
Power(kw)
|
|
DZS-300
|
-2.0
|
300
|
77
|
≤4.0
|
960
|
5-6
|
2*0.4
|
|
DZS-500
|
-2.0
|
500
|
140
|
≤4.0
|
5-6
|
2*0.75
|
|
DZS-550
|
-3.0
|
550
|
152
|
≤5.5
|
5-6
|
2*1.5
|
|
SZC-600
|
-3.0
|
600
|
163
|
≤6.0
|
5-7
|
2*1.5
|
|
DZS-800
|
-4.0
|
800
|
237
|
≤6.5
|
5-8
|
2*2.2
|
|
DZS-850
|
-4.0
|
850
|
262
|
≤8.0
|
5-8
|
2*2.2
|
|
DZS-900
|
-4.0
|
900
|
287
|
≤8.0
|
5-8
|
2*3.0
|
Working principle
Vertical conveyor uses two vibration motor as vibration source, transporting the material along the spiral groove upward by making use of synthetic amplitude of the two vibration motors. In the process of moving up, the material also can be dried or cooled at the same time
Application
Vertical spiral elevator is widely used in food, chemical , metallugry, pharmaceutical,building materials, mining and other industries.
Food industry:sugar powder, starch, milk powder, egg powder, rice powder, food additive, seasoning, spice etc.
Chemical industry:fertilizer, detergent powder, sodium carbonate, talcum powder, dyestuff, rubber, PVC resin, pigment, cosmetics, coatings, Chinese medicine powder etc.
Metal, metallurgy industry:copper powder, nickle powder, aluminum powder, ceruse, ore alloy powder, welding powder, battery material, abrasive powder, fire-proof material etc.
Other industries:paper-making, mining, pharmaceutical industries etc.
Vertical spiral elevator is widely used in food, chemical , metallugry, pharmaceutical,building materials, mining and other industries.
Additional functional
--Drying
Using the heat air to blow away the moisture after washing.
--Cooling
The elevator can be connected to source of cooling air or water to lower the temperature of the material to ambient temperature, apply to the process of heating and roasting.
Features
1. Low power consumption, low noise
2.Two types available to choose: open type and sealed type.
3.Reasonable and simple structure, easy maintenance.
4.Dust-proof, heat-proof, oil-proof and explosion-proof.
5.Small working space and suit for fragile materials.
6.High conveying capacities and high sanitary standard.
7.Material can be cooled or dried during the lifting process according to customer's special request
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
