Brief Description
Vacuum feeder(
vacuum conveyor) is a vacuum feeding machine by using pneumatic vacuum pump as vacuum source.It has advantages of fast feeding,long service period,simple operation,clean and healthy and in conformity with GMP requirement.
Application
It’s widely applied in packer, blender, tablet press machine,vibrating screen machine,capsule filling machine and Wet granulator etc.Vacuum feeder(vacuum conveyor) is easy to operate.Feeding pipe begins to suck materials when press on the feeding switch,when the process of suction finished, vibration device vibrates or back flushing device blow backs prevent from occluding the filter.The two process are set and controlled by temporal sequence so that it can circulate for vibration and back flushing.
Feature & Benefits

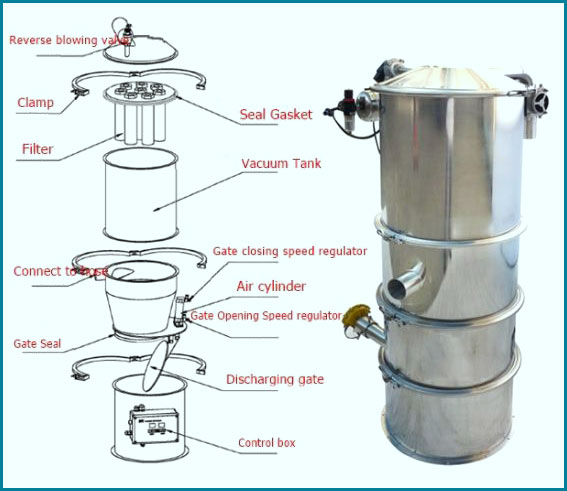

Vacuum conveyor is easy to operate.Feeding pipe begins to suck materials when press on the feeding switch, when the process of suction finished,vibration device vibrates or back flushing device blow backs to prevent from occluding the filter.The two process are set and controlled by temporal sequence so that it can circulate for feeding vibration and back flushing.
1. Material can be customized by stainless steel SUS304 or SUS316 to meet GMP standard;
2. It’s completely sealed for dust-free working condition；
3. This vacuum conveyor can feed powder or small granule product into sealed or open containers;
4.The machine boy is compact,reliable and operation is very easy.
Technical Parameters
|
Model |
GZ-1 |
GZ-2 |
GZ-3 |
GZ-4 |
GZ-5 |
GZ-6 |
GZ-7 |
|
Motor Powder(kw) |
1.5 |
2.2 |
3.0 |
5.5 |
4.0 |
5.5 |
5.5 |
|
Conveying Capactiry(kg/h) |
200 |
500 |
1000 |
2000 |
3000 |
4000 |
5000 |
Remark:Production rate is measured by material volume of 1.3ton/m³
Packing and Shipping:
Standard export package of fumigation-free wooden case for diffrerent machine for sale ,can be customized to suit your requirements.If you have any special needs,pls tell us(like"made in China" sprayed on the case).
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
4.Provide assembly instruction,technical date and related soft copies or video to ensure customer could install and debug by themselves.
5.Touching to our technician to our
