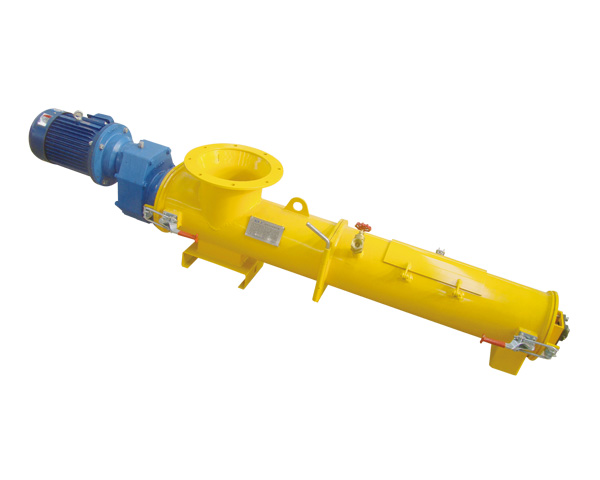

Description:

The Screw conveyor is a kind of continuous conveyor equipment which widely used in various industries,like:buildingmaterials,chemical industry,metallurgy,coal, grain and mechanical processing departments,is suitable for conveying powder,granulated and small lump materials.(Such as coal,ash,slag,cement,food et；)not suitable for transporting perishable,big viscosity,easily agglomerate or high temperature,and a larger corrosive material.
Usually the Screw Conveyor is compose of conveyor body,input and output mouth and driving device three parts.
According to the the Angle of the helical blade, it will be divided into entity helical surface,belt type helical surface and blades of helical surface three forms, including blade of helical surface application is relatively small, mainly used for transporting materials in large viscosity and compressibility, and in the process of delivery, have completed at the same time of material mixing, Etc.

Technical Parameter

Model	Diameter (mm)	Screw Pitch (mm)	Speed (r/min)	Capacity (m³/h)	Speed (r/min)	Capacity (m³/h)	Speed (r/min)	Capacity (m³/h)	Speed (r/min)	Capacity (m³/h)
LS100	100	100	140	2.2	112	1.7	90	1.4	71	1.1
LS160	160	160	112	8	90	7	71	6	50	4
LS200	200	200	100	14	80	12	63	10	50	7
LS250	250	250	90	24	71	20	56	16	45	13
LS315	315	315	80	34	63	26	50	21	40	16
LS400	400	355	71	64	56	52	45	41	36	34
LS500	500	400	63	100	50	80	40	64	32	52
LS630	630	450	50	145	40	116	32	94	25	88
LS800	800	500	40	208	32	165	25	130	20	110
LS1000	1000	560	32	300	25	230	20	180	16	150
LS1250	1250	630	25	388	20	320	16	260	13	200

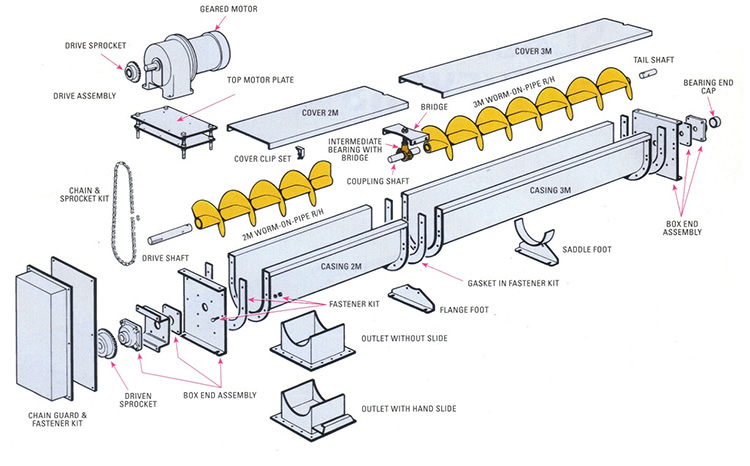

Structure chart:



Using tips:

Screw conveyor is suitable for the working environment temperature which is between 20 ℃ to 50 ℃;Including the horizontal screw conveyor,temperature of material conveyed should be lower than 200 ℃;Conveying distance less than 40 meters, maximum not exceeding 70 meters;Vertical screw conveyor, it’s temperature should not be more than 80 ℃, the vertical height is not more than 8 meters.
Selection model:
LS type screw conveyor can according to different customers production situation and production purpose to customize. production material could be all carbon steel, some stainless steel, or all stainless steel. With food hygiene requirements of enterprise recommend stainless steel material, no request can use carbon steel.
Main feature:
1.Large carrying capacity,safe and reliable.
2.The shell is made of seamless steel pipe,the end of the flange connected to each other,good rigidity,have long service life.
3.Good sealing ,smooth operation,easy installation,dismatling and changing.
4.The discharge hole is equipped with cleaning device,low noise,few wearing part and no-blocking material.

FAQ

1. What's material will be transported by screw conveyor?
Cement, sand, limestone and grain etc.
2. What's capacity of screw conveyor that you want?
20t/h, 50t/h and 100t/h etc.
3. How long is the screw conveyor?
5m, 10m, 15m and 20m etc.
4. Is it horizontal transport or inclined? The inclined angle you want?
0-90°
5. It's better if you have layout drawing or sketch.

Our service:

Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.

After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
4.Provide assembly instruction,technical date and related soft copies or video to
ensure customer could install and debug by themselves.
