HOME > PRODUCTS > Feeding Equipment >

Unbalanced Motor Vibrating Feeder

  • Model: GZ
  • Material: SUS304 OR Q235A
  • Motor: 1~10
  • Usage: Mine me<x>tallurgy Chemical Industry Food Industry
  • Mesh size:
  • Warranty: 18 months
    • Introduction

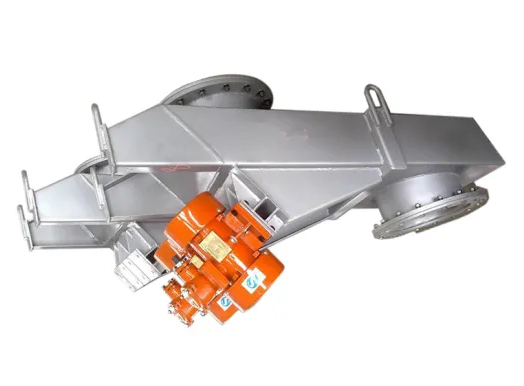

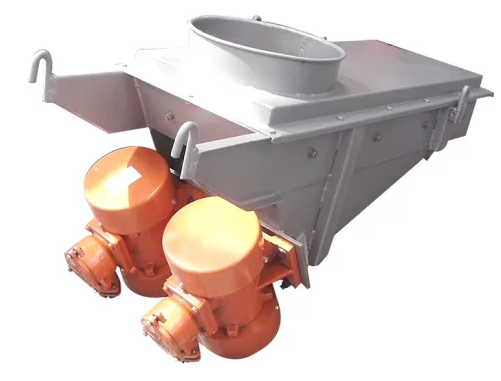

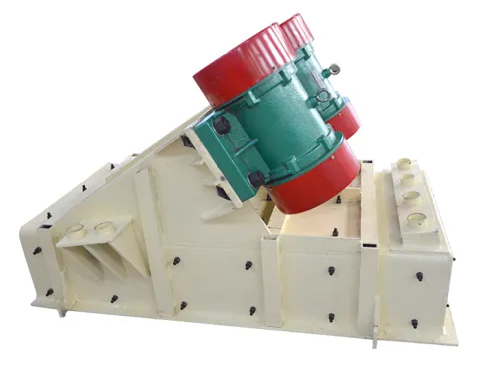

    Hanging Type Unbalanced Motor Vibrating Feeder

    DOWNLOAD SEND MESSAGE CONTACT US
Product introduction

Introduction of hanging type unbalanced motor vibrating feeder

It's a kind of linear direction feeding equipment. During the production process  vibrating feeder can regularly put massive, granular materials from storage silos to the affected device uniformly. In the production line vibrating feeder can make continuous and uniform feeding for crushing machine, at the same time, it can do course screening for the materials.



Features of motor vibrating feeder

1.Uses vibration to "feed" material to a process or machine
2.Variable capacity control for easy adjustment of feed rate
3.Seated or suspended installments for choice
4.Reliable quality approved by CE, ISO, SGS, BV

Technical parameter



Model
 Capacity (t/h)  Feeding  trough
(mm)		 Operation Feeding size
(mm)		 Vibration motor Weight
(Kg)
Voltage  Hertz Model Power KW Rpm
ZG30-4 15 300*1000*160 continue 120 380 50 YZD2.5-4 0.18*2 1450  110
ZG40-4 30 400*1200*160 YZD5-4 0.25*2 155
ZG50-4 50 500*1200*160 YZD8-4 0.4*2 190
ZG60-4 80 600*1800*180 180 YZD16-4 0.75*2 410
ZG70-4 100 700*1800*200 180 TZP20-4 1.1*2 440
ZG80-4 200 800*2000*225 200 TZD32-4 1.5*2 640
ZG90-4 300 900*1500*300 250 YZD50-4 2.2*2 730
ZG110-4 400 1100*1500*300 900
ZG130-4 500 1300*1500*400 350 1000
ZG70-6 80 700*1800*200 150 YZD20-6 1.5*2 960  440
ZG80-6 160 800*2000*225 180 YZD30-6 2.2*2 670
ZG90-6 240 900*1500*300 240 YZD40-6 3.0*2 740
ZG110-6 320 1100*1500*300 YZD50-6 3.7*2 940
ZG130-6 400 1300*1500*400 320 1040
ZG150-6 500 1500*1800*500 2000
ZG180-6 800 1800*1800*500 YZD75-6 5.5*2 2590
ZG200-6 1000 2000*2000*500 360 3700

Our service:

Pre-sale service

1.Help high-end customer to chose a suitable machine and develop local market.

2.We can offer an accurate quotation according to customer’s model or drawings

3.The drawing can be send if needed ,we can help you design the whole line based on your model.

4.We can also supply a free analytics sample materials in our laboratory.

5.OEM and ODM will be always available.
After-sale service

1.24hours service online and fast response within 12 hours

2.Quality warranty is 12 months from the shipping date.

3.Any customers’meet any question,we supply the profesional solution.
