Description:

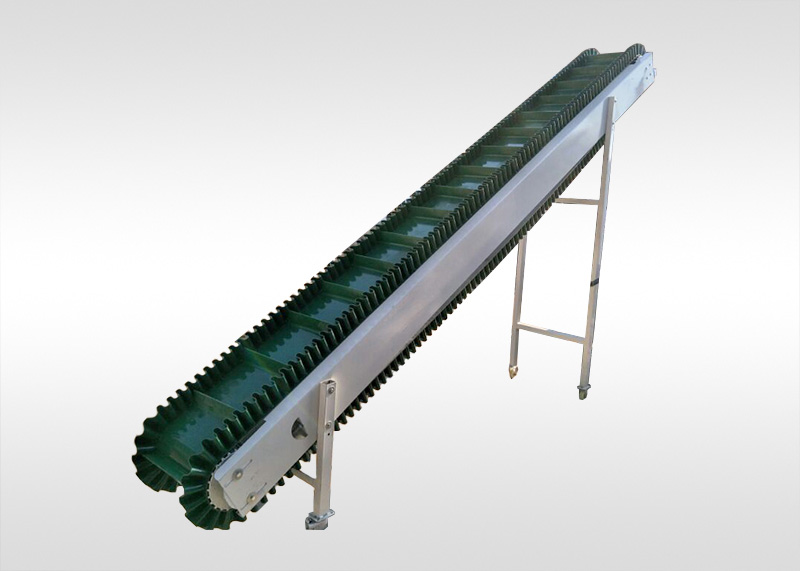

High inclination angle belt conveyor(also called large dip corrugated belt conveyor) with a large angle(90 degrees vertical)transport.So that it’s ideal equipment for general used of bulk materials continuous conveying. Widely adopted in underground mining projects,Chemical,Building materials,Metallurgy,Electric power, Light industry,Grain,Harbor etc.And also conveying a various bulk material (Bulk density:0.5-2.5t/m³）in the range of working enviroment humidity:-15℃--+40℃.
It’s can be used widely in metallurgy ,Mining,Food industry,Chemical industry,Building materials.etc.
Main feature:
1.Decreasing occupation and saving investments.
2.Large transportation throughout,strong universality.
3.Dip angle range of 0°to 90°
4.Easy maintenance, simple structure,part standardization.
Technical Parameter
|
Belt width |
Sidewall height |
Cleat pitch |
Slant angle |
|
30° |
40° |
50° |
60° |
70° |
90° |
|
mm |
mm |
mm |
Capacity(m3/h) Speed of belt=1m/s |
|
500 |
120 |
252 |
52 |
40 |
32 |
26 |
21 |
- |
|
160 |
378 |
65 |
52 |
42 |
34 |
28 |
17 |
|
650 |
120 |
252 |
78 |
60 |
48 |
39 |
32 |
- |
|
160 |
378 |
73 |
56 |
45 |
36 |
30 |
- |
|
800 |
120 |
129 |
99 |
76 |
60 |
49 |
40 |
- |
|
200 |
378 |
148 |
114 |
91 |
74 |
61 |
37 |
|
1000 |
160 |
378 |
129 |
99 |
79 |
64 |
52 |
- |
|
240 |
504 |
229 |
176 |
141 |
- |
- |
- |
|
1200 |
160 |
252 |
223 |
180 |
144 |
117 |
96 |
59 |
|
240 |
378 |
342 |
280 |
224 |
183 |
149 |
91 |
|
1400 |
200 |
252 |
299 |
231 |
185 |
151 |
123 |
75 |
|
240 |
378 |
422 |
345 |
276 |
225 |
184 |
113 |

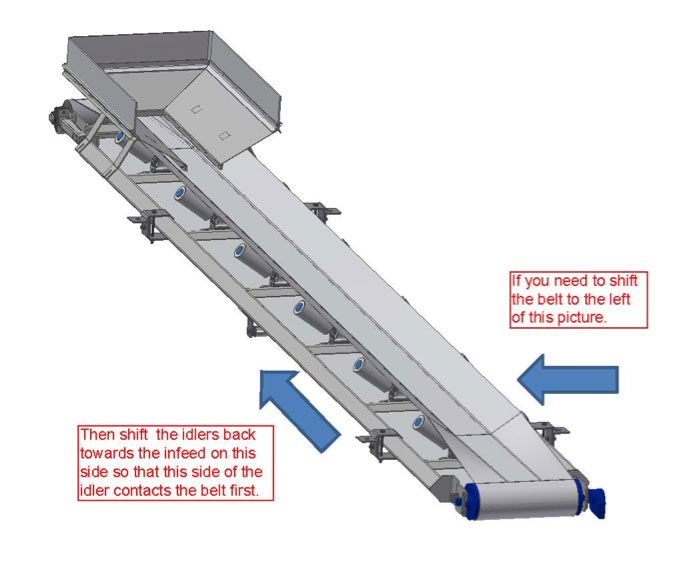

Structure Diagram
FAQ
1. What’s feeding material name?
Bulk density and water content.
2. May i ask the belt width,discharge height and ground length that you want?
The standard conveyor is with belt width 300mm, discharge height 3296mm
3.Can you tell us if you need variable speed or only certain speed you need?
If you need variable speed, we shall add frequency inverter to control speed at any time as your need.
4.What’s usually Voltage&Frequency in your city?
Various power voltage:110V 200V 240V 380V 415V 450V 550V
Power Frequency:50HZ 60HZ or Single phase electricity
5.What’s usually Voltage&Frequency in your city?
Various power voltage:110V 200V 240V 380V 415V 450V 550V
Power Frequency:50HZ 60HZ or Single phase electricity
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
