Description:

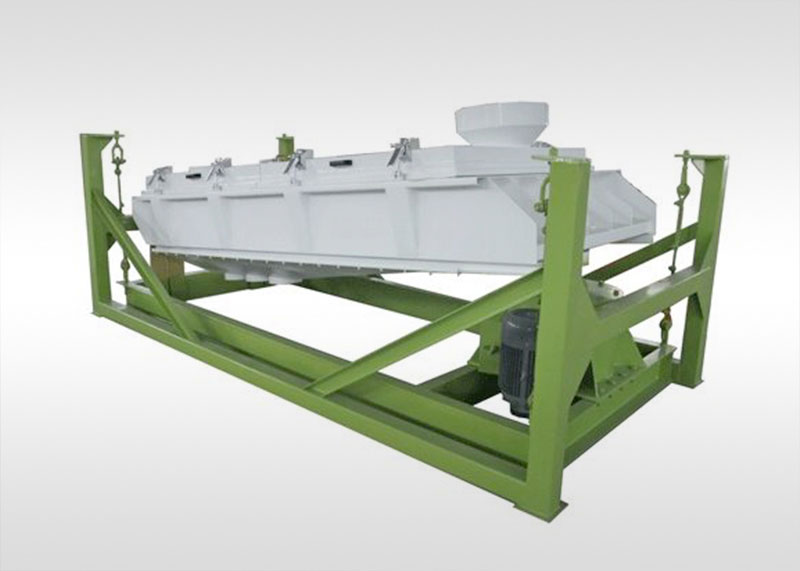

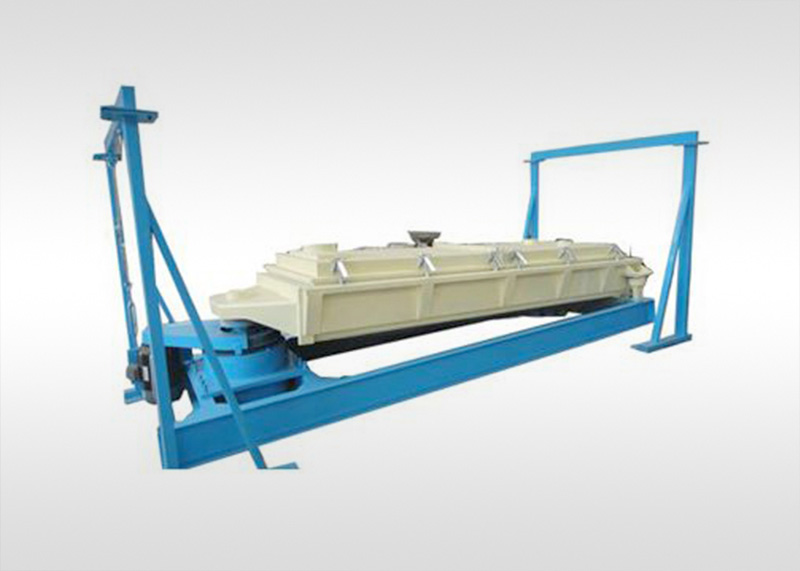

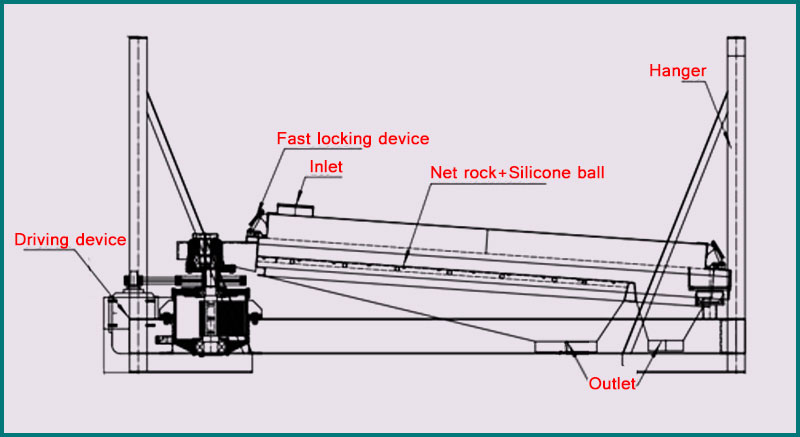

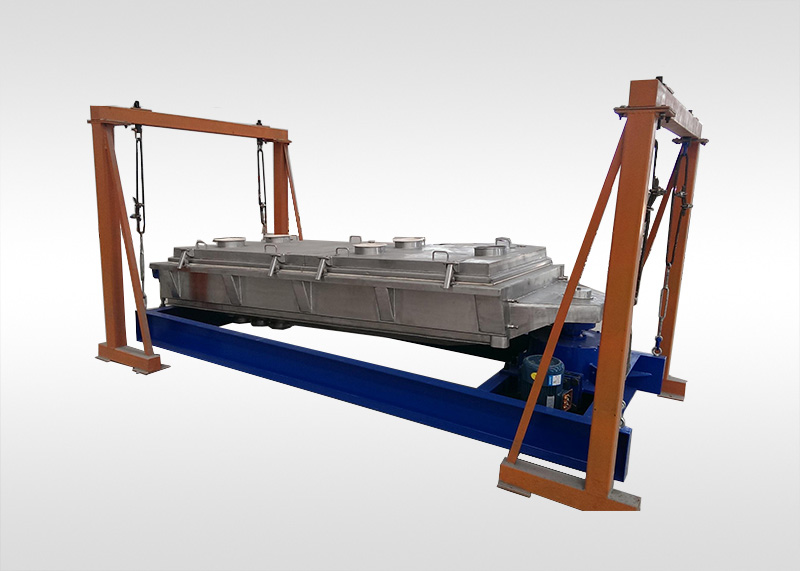

Gyratory Vibrating Screen is another new type of screening equipment which is developed by advanced foreign technology. It’s has advantage of reasoable design,simple structure ,smooth operation,fully enclosed structure ,no flying dust.no-blocking mesh.This is especially effective when dealing with high absorbency,viscous,easy clogging materials.Because the principle of planar rotating is adopted to reduce the static of a device and the dynamic loads.It’s also uses vibrating up and down and automatically clean under the screen. Compared with the traditional of Linear vibrating screen,the new one has improved the life time of screen.the noise is lower, seiving area is bigger.it’s had change the screen efficiency from 93-95 to 98.5.
Application
It’s also extensively used in Chemical industry,food processing,fireproofing,building industry.
Main feature:
1, No vertical vibration, screen long life (6-12 months).
2, Each screen is equipped with clog-proof function and tampers cleaning function.
3, screen without plugging holes, extending the service period.
4, Due to the plane rotation principle,the discribution of material is obviously improved ,thereby promoting large output,low energy consumption,and high screening efficiency.
5, Closed structure without dust pollution
6, 3-5 times lower transport load.
Technical Parameter
Model |
Screen surface area (㎡) |
Layers |
Feeding size
(mm) |
Amplitude
(mm) |
Frequency(r/min) |
Model of motor |
Power
(kw) |
PHZS1224 |
1200x2400 |
1-3 |
<15 |
75-90 |
1450 |
Y132S-4 |
5.5 |
PHZS1230 |
1200x3000 |
1-3 |
<15 |
75-90 |
1450 |
Y132S-4 |
5.5 |
PHZS1236 |
1200x3600 |
1-3 |
<15 |
75-90 |
1450 |
Y132S-4 |
5.5 |
PHZS1524 |
1500x2400 |
1-3 |
<15 |
75-90 |
1450 |
Y132S-4 |
5.5 |
PHZS1530 |
1500x3000 |
1-3 |
<15 |
75-90 |
1450 |
Y132S-4 |
5.5 |
PHZS1536 |
1500x3600 |
1-3 |
<15 |
75-90 |
1450 |
Y132S-4 |
5.5 |
PHZS1830 |
1800x3000 |
1-3 |
<20 |
75-90 |
750 |
Y160L-8 |
7.5 |
PHZS1836 |
1800x3600 |
1-3 |
<20 |
75-90 |
750 |
Y160L-8 |
7.5 |
PHZS1840 |
1800x4000 |
1-3 |
<20 |
75-90 |
750 |
Y160L-8 |
7.5 |
PHZS2036 |
2000x3600 |
1-3 |
<20 |
75-90 |
750 |
Y160L-8 |
7.5 |
PHZS1840 |
1800x4000 |
1-3 |
<20 |
75-90 |
750 |
Y160L-8 |
7.5 |
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
4.Provide assembly instruction,technical date and related soft copies or video to ensure customer could install and debug by themselves.
FAQ
1.How can customer’s be familiar with technical performace and paramete.pls following the information,tell us:
Pls tell us: row material name (Bulk density and water content.)
What’s main purpose of purchasing our machine?
The function of Gyratory vibrating screen?
Separed solids from liquids or segregate dry materials into various size.
Handling capacity ( kw/h/LH)?
The row material size:(mesh or mm)
How many layers do your need?
What’s your local power supply ?( Voltage and Frequecy )
What’s material for machine as your need?
A.All stainless steell 304 or 306,
B.All carbon steel
C.Touching part sus304,the other parts is carbon steel.
(Note:All of machine’s spare can be supported customized by customer specific require.)
2.How about the quality of products?
Our products quality will be striclty control and inspect by our QC before delivery.
In order to guarantee any customer’s safety using,and include assembly instruction on how to install and debug by themselves.
Quality warranty is 12 month from the shipping date.
3.How to make payment when confirmed order?
100% TT,Western Union,Paypal can be available.
MOQ require?(1set is okay)
Our MOQ is 1 set.(if you need spare parts,it’s also okay)
