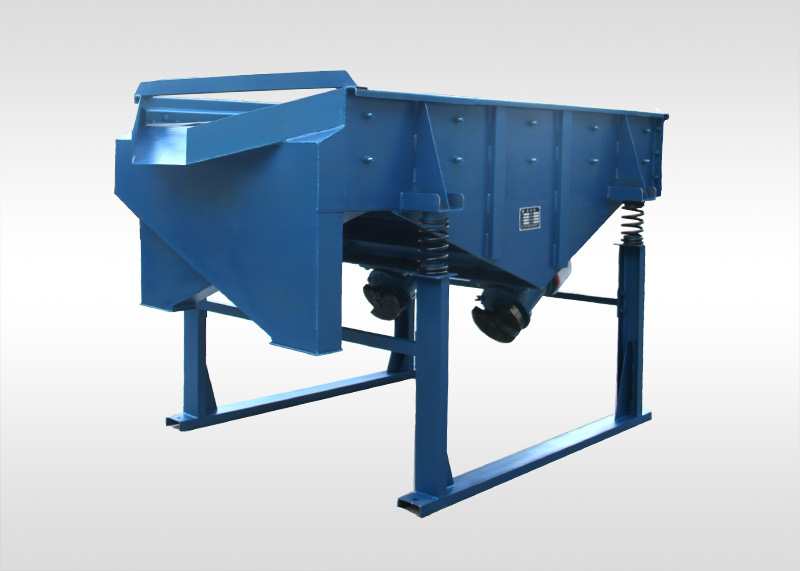

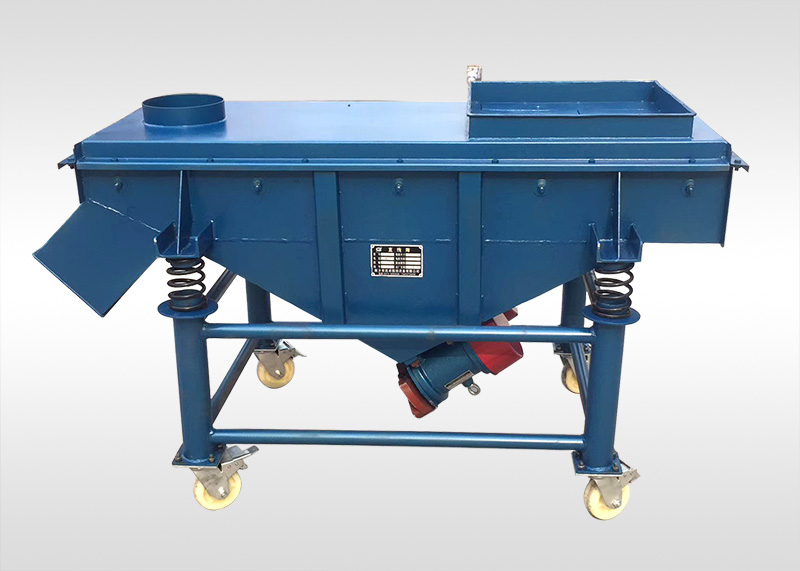

Brief Description:
DZSF Series Linear Vibrating Screen is a kind of common closed light-duty vibrating screen equipment which use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. The material evenly enter into the inlet from the feeder.It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.
Applied Field:
1) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
2) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
3) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Distinctive Feature:
1.Dust proof ,durable design,simple operation.
2.Easy and convenient to clean up and change meshes.
3.Energy-saving and low noise with vibration motor.
4.Carbon steel or stainless steel.
5.Mesh size can be customized by customer standard.

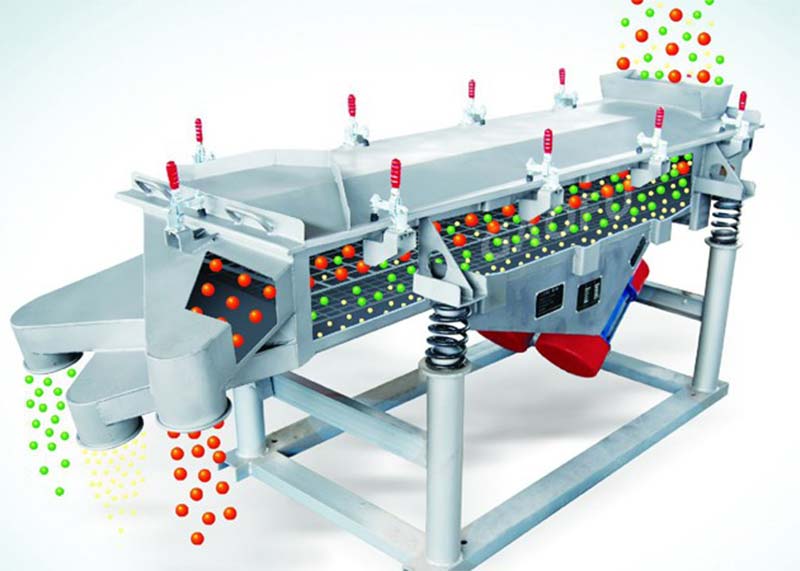

Working Principal:
Technical Parameter
|
Model |
Screen Specification (mm) |
Layer |
Mesh Size(mm) |
Particle Size(mm) |
Vibrating Frequency (r/min) |
Double Amplitude (mm) |
Power (KW) |
Vibrating Direction Angle （°） |
|
GZSZ525 |
500×2500 |
1--6 |
0.074-10 |
0.06-15 |
960, 1450 |
4--8 |
2×0.4, 2×0.75 |
45-60 |
|
GZSZ1020 |
1000×2000 |
1--6 |
0.074-10 |
0.07-20 |
960 |
4--8 |
2×0.75, 2×1.5 |
45-60 |
|
GZSZ1025 |
1000×2500 |
1--6 |
0.074-10 |
0.07-15 |
9,601,450 |
5--8 |
2×0.4, 2×0.75 |
45-60 |
|
GZSZ830 |
800×3000 |
1--6 |
0.074-10 |
0.1-20 |
960 |
6--8 |
2×0.75, 2×1.5 |
45-60 |
|
GZSZ1030 |
1000×3000 |
1--6 |
0.074-10 |
0.1-20 |
960 |
6--8 |
2×0.75, 2×1.5 |
45-60 |
|
GZSZ1224 |
1200×2400 |
1--3 |
0.074-10 |
0.1-23 |
960 |
6--8 |
2×0.75, 2×1.5 |
45-60 |
|
GZSZ1230 |
1200×3000 |
1--3 |
0.074-10 |
0.1-23 |
960 |
6--8 |
2×1.5 |
45-60 |
(NOTE:All kinds of powder materials can be saparation and classification .All kinds of liquid and slurry can be filtere. It can equip with single-layer or multi-layer screen to achieve the target of rating, impurity, removing powder, testing, washing, dehydration etc.)
