Brief Description

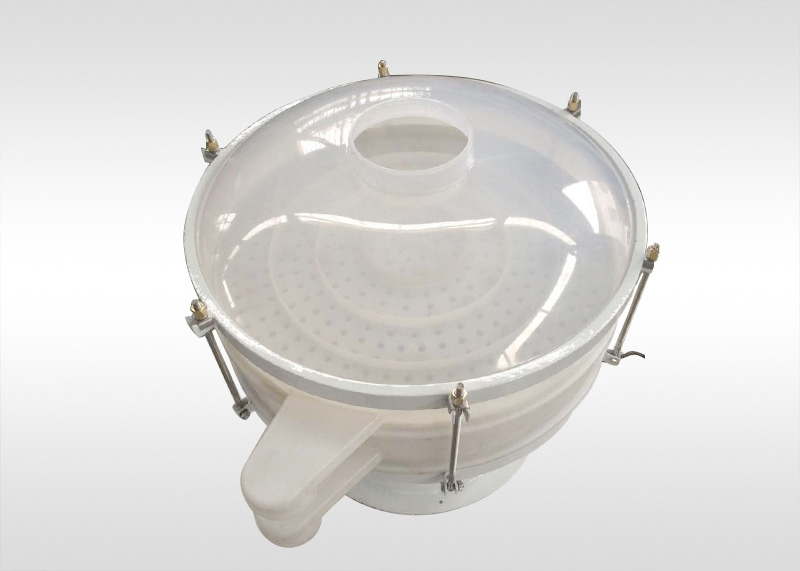

PP vibration screen used in special processing industry. The main purpose is screening and filtering corrosive material or slurry.Many customers also call polypropylene vibration sieve, PP plastic vibration sieve, acid plastic vibration sieve, chemical vibration sieve etc.
It is currently the most effective solution to solve the screening problem of Corrosive Material and ensure that the material will not deteriorate in the screening process.

Working Principle

The PP vibrator screen(Plastic vibrating sieve) is designed as a high-precision screening machinery.it’s adopts“ vertical vibration motor “as the vibrator.On the top and bottom of the vertical vibration motor through installing eccentric hammer, make motor rotation movement into horizontal, vertical and tilted three dimensional movement. And then transfer the movement to the screen surface. Diameter can be ranged from 400mm to 2000mm,with single or multiple screening deck(1-5layer)

Salient Feature:

1.Anti-clogging and self cleaning, It’s can be reduce the odds of blocking.
2.Single deck and Multi-deck mesh, it’s can be graded and filtered from 2-4
    levels at the same time.
3.It’s extremely suitable for screening and filtering corrosive material.
4.Continuous operation,automatic classification screening.
5.Long life service and high efficiency ,easy to change net.
6.Small valume, less space occupation,low weight.
7.Easy to move,360 degree adjustment of discharge opening.
.
FAQ

1. What’s row material name? Bulk density(kg/m³）and water content(%)?
For example:Powders,Granular,Lump etc.
2. What’s capacity your required   kw/h?
20t/h, 50t/h and 100t/h etc.
3.What’s main purpose of purchasing our machine?
 Aim of using: Grading or Getting rid of impurity/Filtration/Grading
4.How many layer do you need? And what’s mesh size for each layer?
Single layer or Multi-layer is supported to be customized by your requirements.
5.What’s usually Voltage&Frequency  in your city?
Various power voltage:110V 200V 240V 380V 415V 450V 550V
Power Frequency:50HZ 60HZ or Single phase electricity
6.How many layer you need? And what’s mesh size for each layer?
Single layer or Multilayer is supported to be customized by your requirements.
7.What’s material for machine as your need?
 A Stainless steel 304
B Carbon steel Q235
C Touching parts SUS304


Our service:

Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.

After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
