Description:
Short- introduction of Vibrating table:
Vibrating table is also called compacting platform,which is mainly used for contacting material.It can decrease and remove the gap or air between material.

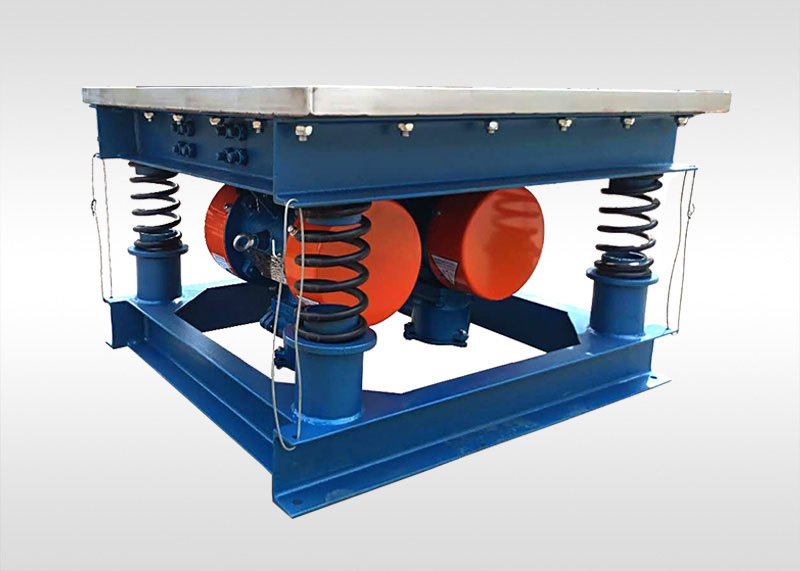

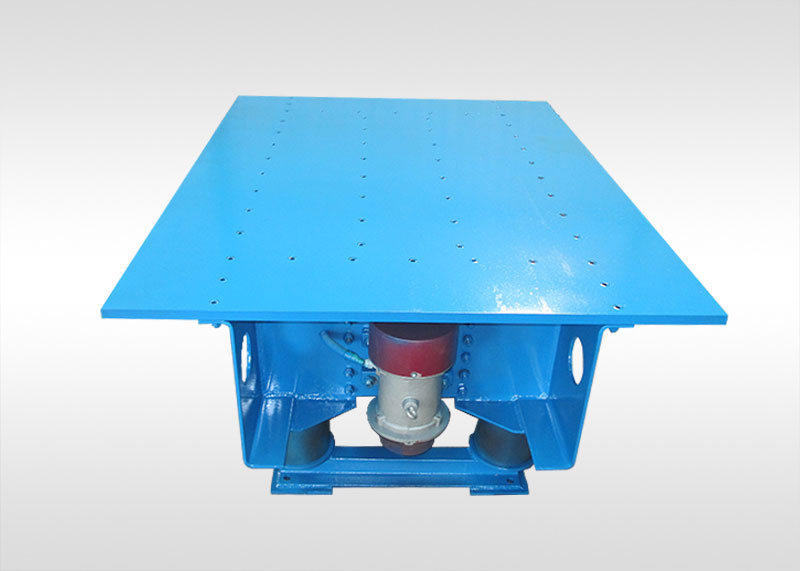

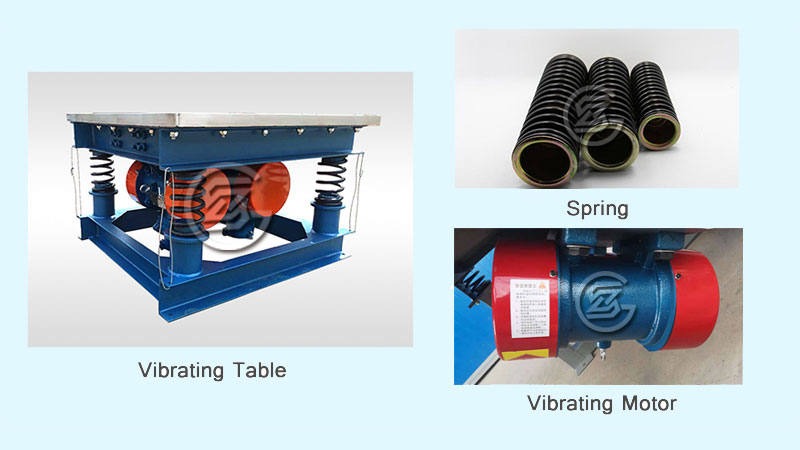

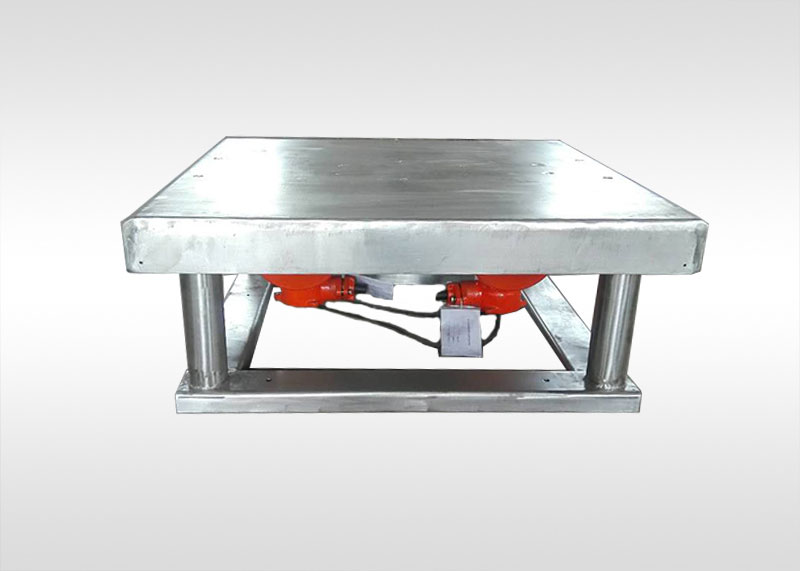

a.Machine structure:It’s compose of bottom brackets,upper platform,vibrating motor and shock-absorbing device.
b.Adopt three dimensional vibrating motion: a. horizontal b. vertical. c. up to down.
c.Motor quantity :it should be an even number,such as 2, 4, 6, 8…
d.The shock absorption mechanism of the vibration platform is mainly compose of damping springs:Steel spring,rubber spring,Composite spring.
Application
GZ-Vibrating table is widely used in metallurgy,mould,food, chemical industry,building material,coal,electricity and so on.
It can change the granular and powdery materials from bulk to lump in the whole productive process.Their application provides either an enormously increase in the net weight of the container or reducing in the container size with subsequent saving in shipping and stroage space.
Main feature:
1.It’s suitable for precision casting ,sand compaction,
2.It’s smooth and liable performance.
3. Infinitely varialbe speed, the frequency and amplitude can be adjusted and changed which make the mold to be better compaction results.
4.Smalll space,low noise,minor maintenance.
5.Self-locking,we can ensure accurate position in the production line.
6.Table height is adjustable,it is suitable for production line.
7.Three-dimensional vibration for complex cavity casting
|
Model |
Area (Square meter) |
Power(kw) |
Amplitude(mm) |
Weight(kg) |
|
ZDP-500X500 |
0.25 |
2x0.25 |
2-5 |
300 |
|
ZDP-1000X1000 |
1 |
2x0.4 |
2-5 |
600 |
|
ZDP-1200X1200 |
1.44 |
2x3 |
2-5 |
1200 |
|
ZDP-1500X1500 |
2.25 |
2x3 |
2-5 |
2000 |
|
ZDP-3000X3000 |
9 |
6x1.5 |
2-5 |
3000 |
Detailed lmages
FAQ
1. What’s the main purpose of Vibrating table?
Aim of using :Tigh or Loose
2. What size of your mold?
If you the mold size ,pls kindly tell us and provide customers with customized
with customized solution directly.
3.Can you tell us what’s size of vibrating table?
Pls send us a exsisting size of vibrating talbe or structure digram,so that we can be easy quote real price ASAP.
4.What’s number of mold in vibrating table?
IF you have ,pls provive us .
5..What’s the capacity (kg/hour)of Vibrating table ?
5T/H or 10T/H.
6.What’s usually Voltage&Frequency in your city?
Various power voltage:110V 200V 240V 380V 415V 450V 550V
Power Frequency:50HZ 60HZ or Single phase electricity
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
4.Provide assembly instruction,technical date and related soft copies or video to ensure customer could install and debug by themselves.
