Brief Description

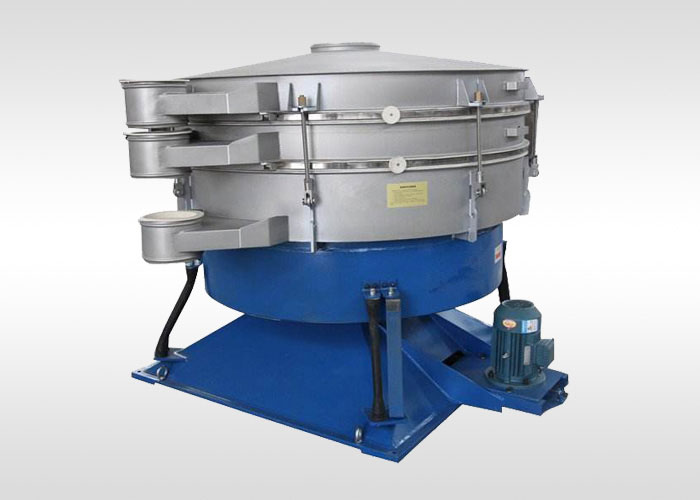

The circular swing sieve is an efficient screening machine which is designed to meet the needs of large production , high screening accurate of manufacture. The simplest screening is to focus the eyes and use two hands ,the swing screen is a mechanical simulation of this. it’s the most effective simulation of artificial sieving movement.(the sievning precision,efficiency and sieving life is 5-10times than the common cylinder sieve),for the processing of all the fine and ultra-fine powder and special materials,especially suitable for materials which are difficult to classify.
Feature:
1. High efficient accurate screening---Sieving efficiency up to 90%-95%,silicone ball and ultrasonic cleaning device is high efficiency mesh-cleaning device system,the mesh aperture will not be blocked.
2. At most 6 levels separation.
3. Enclosed cleaning dust, safe operation,the acceleration is 4.5 times higher than common vibrating screen.
4. Sieving parts’ increases the life expectancy and reduces maintenance.
5. Low-noise,easy maintenance and simple operation.
6. Noise<75dB. Re-optimization is balanced, groud-based dynamic load is low.
|
Model |
GZY-600 |
GZY-1000 |
GZY-1200 |
GZY-1600 |
GZY-2000 |
GZY-2400 |
GZY-2600 |
|
Diameter(mm) |
600 |
1000 |
1200 |
1600 |
2000 |
2400 |
2600 |
|
Spatial requirement |
0.4 |
1.2 |
1.6 |
2.5 |
3.6 |
5.2 |
6.8 |
|
Max sieve layer(s) |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|
Power Consumption(Kw) |
0.25 |
1.5 |
2.2 |
2.2 |
2.2 |
5.5 |
5.5 |
|
Filter accessories |
2 layers |
2 layers |
2 layers |
1 layer |
1 layer |
1 layer |
1 layer |
Application:
It’s extensively used in mining,food and spice,pharmacy,wood,plywood,metallurgy,rubber,fodder,fertilizer,sugar,salt,regeneration etc.
Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder, etc.
Payment:
.How to make payment when confirmed order?
.we usually use 100%TT in advance,Western Union is also availabe.
.How long for the shipping time?
.5-10 working days before pay deposit.
(Note:If you want pay in other means,pls look at our website:www.gzvibratingscreen.com)
FAQ
1. What’s row material name? Bulk density(kg/m³）and water content(%)?
For example:Powders,Granular,Lump etc.
2. What’s capacity your required kw/h?
20t/h, 50t/h and 100t/h etc.
3.What’s main purpose of purchasing our machine?
Aim of using: Grading or Getting rid of impurity/Filtration/Grading
4.How many layer do you need? And what’s mesh size for each layer?
Single layer or Multi-layer is supported to be customized by your requirements.
5.What’s usually Voltage&Frequency in your city?
Various power voltage:110V 200V 240V 380V 415V 450V 550V
Power Frequency:50HZ 60HZ or Single phase electricity
4.How many layer you need? And what’s mesh size for each layer?
Single layer or Multilayer is supported to be customized by your requirements.
5.What’s material for machine as your need?
A Stainless steel 304
B Carbon steel Q235
C Touching parts SUS304
