Brief Description

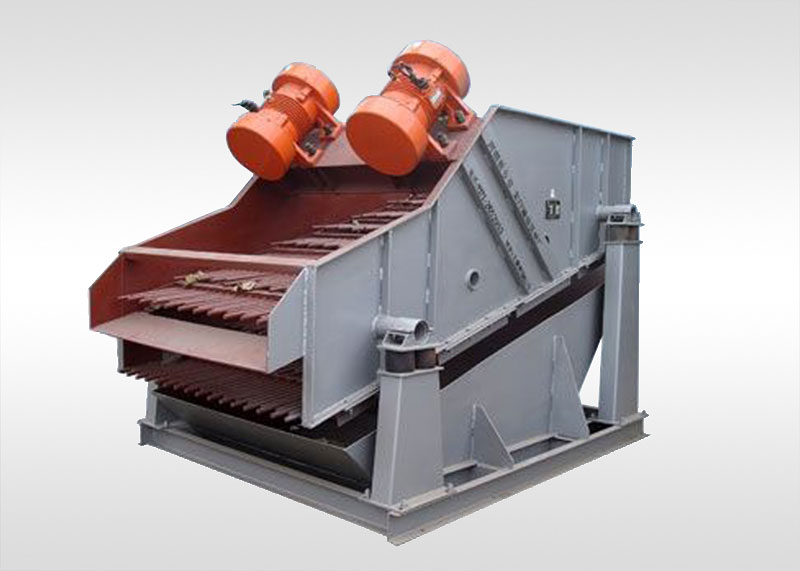

Two reverse rotation self-synchronization motors are used in Mining Vibrating screen,the vibration force produced by the eccentric block cancel each other in parallel to the direction of the motor axis,and superposes into a combined force in the direction perpendicular to the axis of the motor,so the motion track of the sieve is a straight line.Screen body vibrate periodically according to vibrating direction.Materials are separated into various sizes according to different request.
Application
It’s extensively used for screening materials in Metallurgy,Mining, Coal,Building materials and other industries.The Feeding particle size is generally less than 150mm.
Feature&Benefit
1. Rugged Construction
2. 2.Low Cost
3. Additional cleaning system
4. Long life
5.OEM Brand Design&Custom
Technical Parameter
|
Model |
Screen Size (mm) |
Capacity
(t/h) |
Power
(kw)) |
Frequency
(Hz) |
Voltage
(V) |
Screen
area
（㎡) |
Single-Layer
Weight(kg) |
Multi-Layer
Weight(kg) |
|
ZSGB1020 |
≤250 |
10-20 |
2.0 |
10 |
380 |
2 |
2300 |
2500 |
|
ZSGB1224 |
≤250 |
15-250 |
2.5 |
10 |
380 |
2.88 |
3000 |
3400 |
|
ZSGB1030 |
≤250 |
15-250 |
2.5 |
10 |
380 |
3 |
3300 |
3600 |
|
ZSGB1530 |
≤250 |
20-350 |
3.7 |
10 |
380 |
4.5 |
5100 |
5500 |
|
ZSGB1540 |
≤250 |
25-400 |
5.5 |
10 |
380 |
6 |
6800 |
7300 |
|
ZSGB1836 |
≤250 |
25-400 |
5.5 |
10 |
380 |
6.48 |
7200 |
7600 |
|
ZSGB2040 |
≤250 |
30-500 |
5.5 |
10 |
380 |
8 |
8000 |
|
Our Service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
4.Provide assembly instruction,technical date and related soft copies or video to ensure customer could install and debug by themselves.
