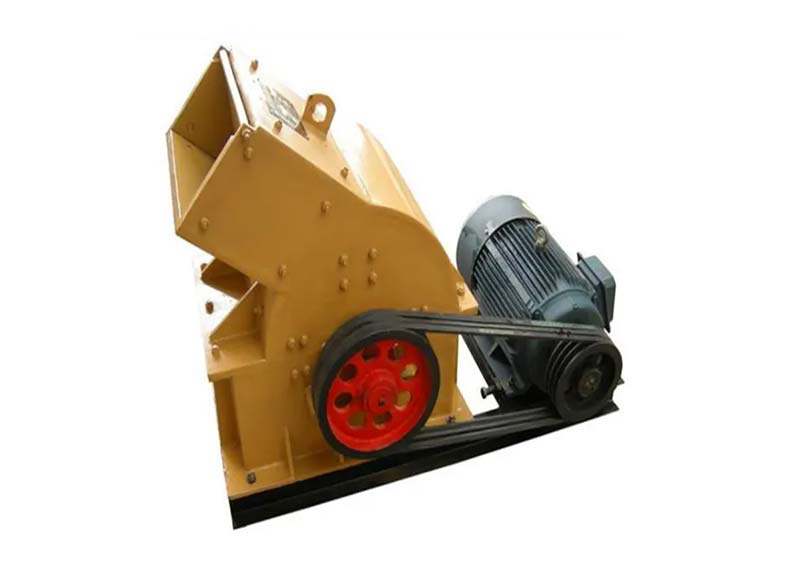

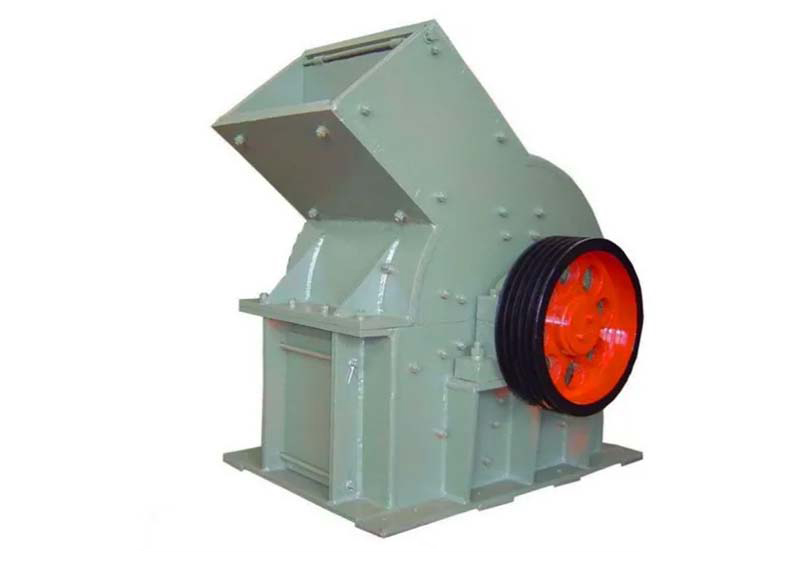

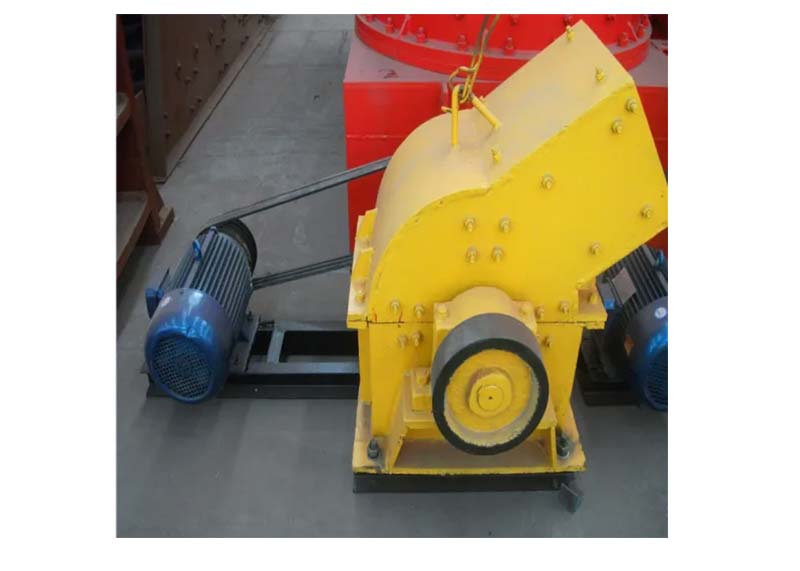

Coke and clay crushing equipment of hammer crusher
Application

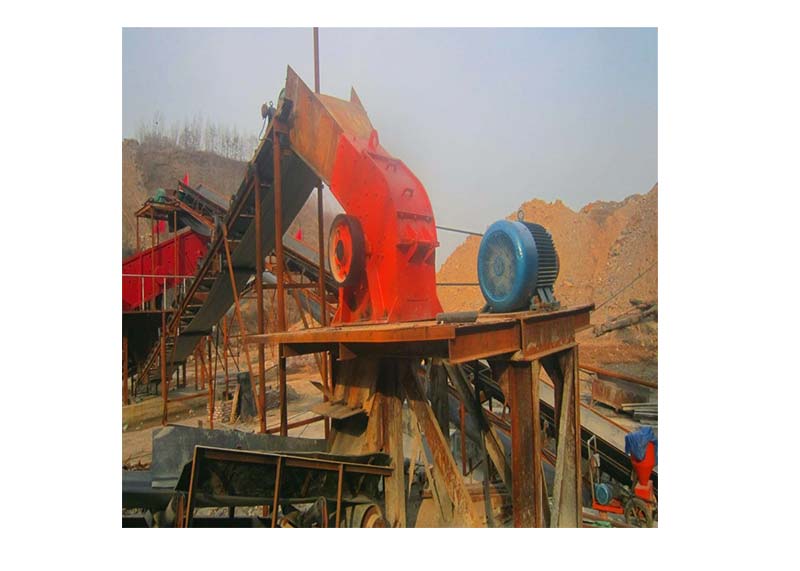

This series of hammer crushers is suitable for crushing various materials of brittleness such as coal, gangue, coke, slay, shale and loose lime stone etc. Whose compressive resistance does not exceed 100Mpa and the surface moisture content should not be greater than 8%.
Working principle

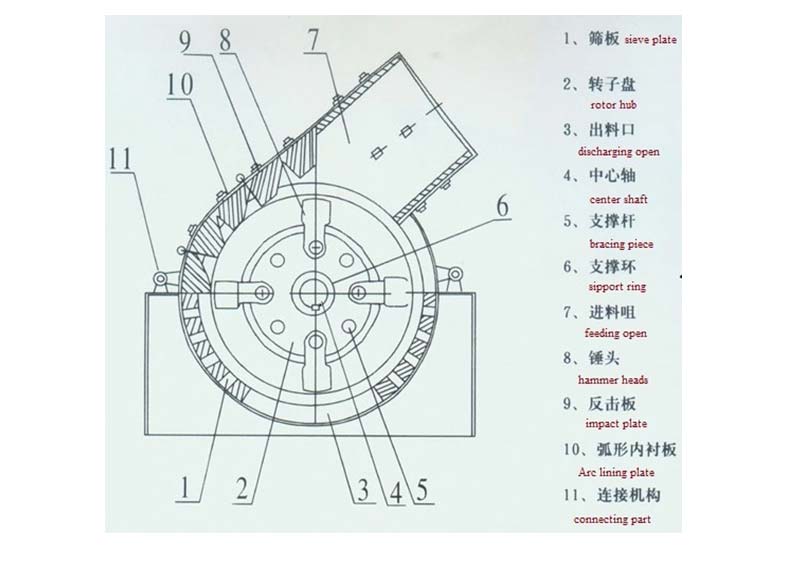

The main wroking part of hammer crusher is rotor with hammer, the rotors consist of main shaft, disk, pin shaft and hammers.The motor drives the rotor to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by high-speed hammer. There is a screening palte under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until they reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirements.
Features
1.It is of various types.
2.It is suitable for crushing maximum, medium and minimum stones.
3.It is easy to be operated.
Techinacl parameters
|
Type |
Model |
Feed size
(mm) |
Discharge
Size(mm) |
Capacity
(m3/h) |
Motor |
Weight(t) |
Overall Size
( L*W×*H )(mm) |
|
Number of Poles |
Power(kw) |
|
Hammer Crusher |
PC400×300 |
≤200 |
≤10 |
5-10 |
4 |
11 |
0.8 |
900×670×860 |
|
PC600×400 |
≤250 |
≤15 |
10-22 |
4 |
22 |
1.5 |
1200×1050×1200 |
|
PC800×600 |
≤250 |
≤15 |
18-40 |
4 |
55 |
3.8 |
1310×1180×1310 |
|
PC1000×800 |
≤350 |
≤15 |
25-50 |
4 |
75 |
4.9 |
1600×1390×1575 |
|
PC1000×1000 |
≤300 |
≤19 |
30-55 |
6 |
132 |
8 |
1800×1590×1775 |
|
PC1250×1250 |
≤350 |
≤19 |
35-65 |
6 |
180 |
14 |
2060×1600×1890 |
|
PC1400×1400 |
≤350 |
≤25 |
50-100 |
6 |
280 |
32 |
2365×1870×2220 |
|
PC1600×1600 |
≤350 |
≤35 |
100-150 |
8 |
480 |
37.5 |
3050×2850×2800 |
