Description:

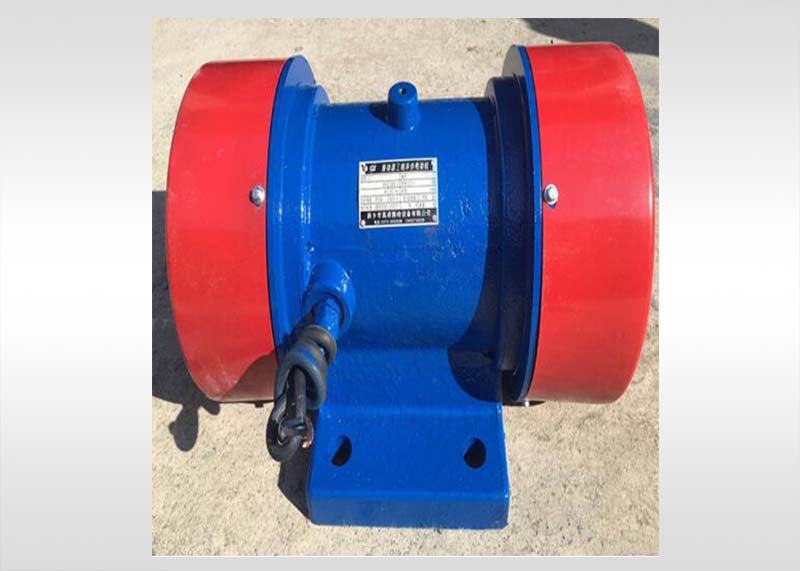

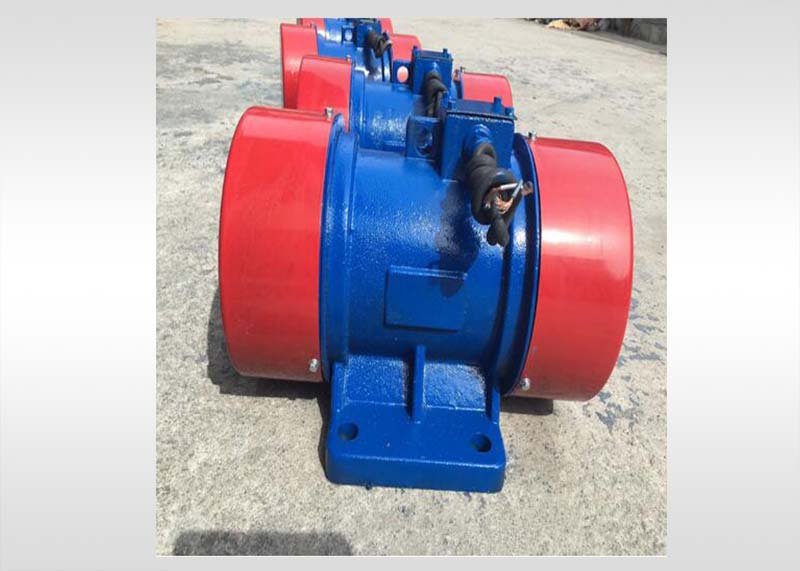

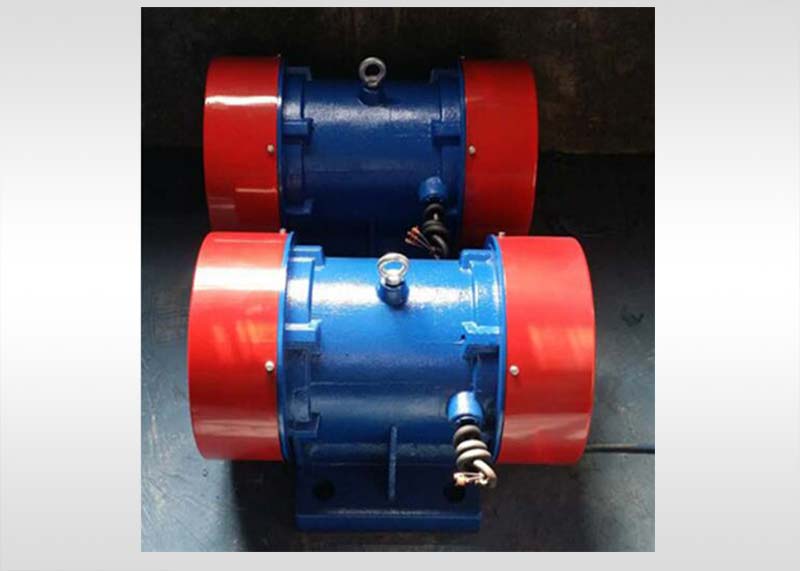

The vibration motor is an excitation source that combines a power source and a vibration source. A horizontal vibration motor is equipped with a set of adjustable eccentric blocks at each end of the rotor shaft. The centrifugal force generated by the shaft and the eccentric block rotating at high speed is used to obtain the excitation force. The vibration motor has the advantages of high utilization rate of excitation force, low energy consumption, low noise, long life, excitation force can be adjusted steplessly, easy to use, etc.
Application:
Widely used in hydropower construction, thermal power generation, construction, building materials, chemical industry, mining, coal, metallurgy, light industry and other industrial sectors.
Features:
1 The vibration force can be adjusted steplessly by adjusting the angle of the eccentric block
2 Hermetic protective cover made of stretched galvanized steel sheet
3 Seal the bearing with imported V-ring and grease groove
4 Seal with O-ring to prevent dust from entering
5The coil is installed by special dipping treatment
6Sturdy bearing seat is used to transmit vibration force
7The cast ring makes it easy and safe to assemble in any position
8The casing is a precision casting, fully enclosed and vibration resistant
9Special metal outgoing wire clamping connector, effectively prevent the cable from being damaged by vibration
10The fixed cast junction box can withstand the most severe environmental test, with dustproof and waterproof functions

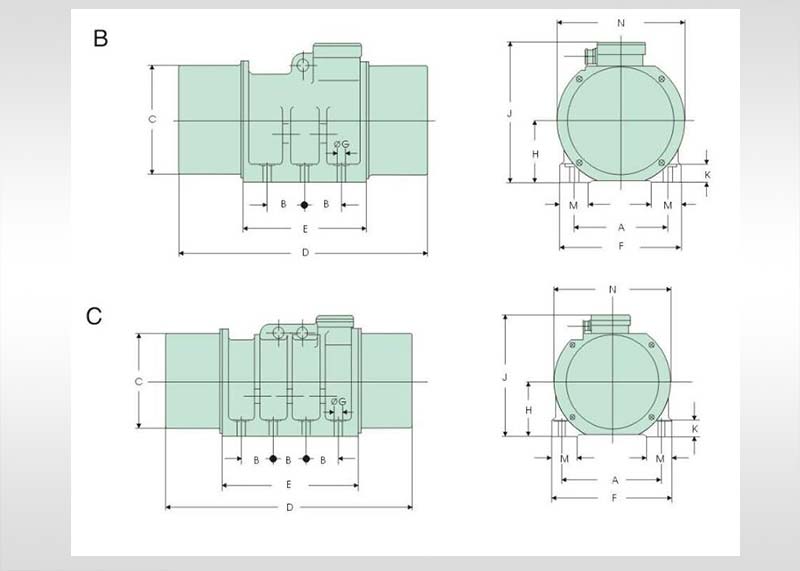

Technical parameters
