Description:
The VB450 low noise filter are specially designed for low noise ,high efficency ,easy to move and fits with minitype VB450 by technical engineers.Mainly be applied to sieve seriflux and materials containing less fine powders.325 mesh filter painting materials of specific gravity 1.1,up to1200 liters per hour,30 mesh sievning flour ，up to700kg per hour.the effect will be better in filtering ceramic glaze.
Aim of using: Grading or Getting rid of impurity/Filtration/Classification
1.360 degree adjustment of discharge port which materials can be automatically discharge.
2.High efficiency,smart design,fit for any powders and serosity.

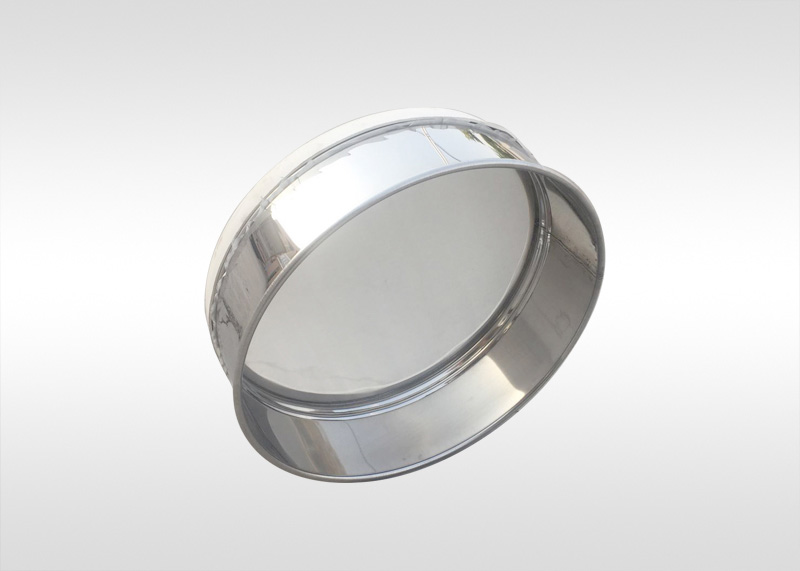

3.Unique designed net frame which is easy to change, only 3-5,Min for net replacement.
4. No block sieving mesh, no powder flying, no liquid leakage,the min sieving size:500M or 0.028mm.
5.Working Constantly.

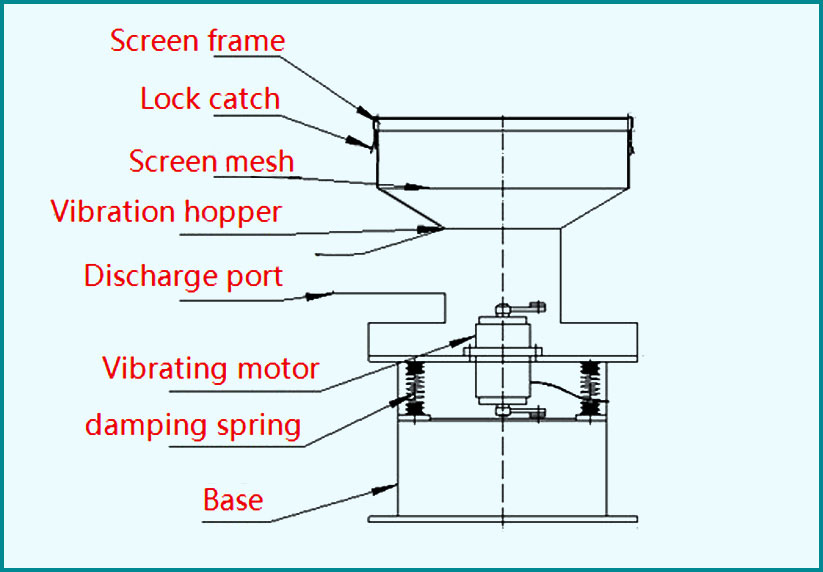

Structure diagram:
Technical Parameter
|
Model |
Power (KW) |
Sieving Dimension
L×W×H(mm) |
Screen net measure
(diameter height)
|
Weight (kg) |
Description |
|
GZ450SA |
0.18 |
500×500×600 |
VB450 series sieve uses new type stainless
steel net 488mm×135mm |
40 |
Average SS41 for base material |
|
GZ 450SN |
0.18 |
500×500×1000 |
VB450 series sieve use new type stainless
steel net 488mm×135mm |
48 |
Average SS41 for base material |
FAQ
1. What’s row material name?
Bulk density and water content.
2. What's capacity of screw conveyor that you want?
0.5t/h-5t/h
3.What’s main purpose of purchasing our machine?
Aim of using: Grading or Getting rid of impurity/Filtration/Classification
4.How many layer do you need? And what’s mesh size for each layer?
Single layer or Multi-layer is supported to be customized by your requirements.
5.What’s usually Voltage&Frequency in your city?
Various power voltage:110V 200V 240V 380V 415V 450V 550V
Power Frequency:50HZ 60HZ or Single phase electricity
4.How many layer you need? And what’s mesh size for each layer?
Single layer or Multilayer is supported to be customized by your requirements.
5.What’s material for machine as your need?
A Stainless steel 304
B Carbon steel Q235
C Touching parts SUS304
