Brief Description

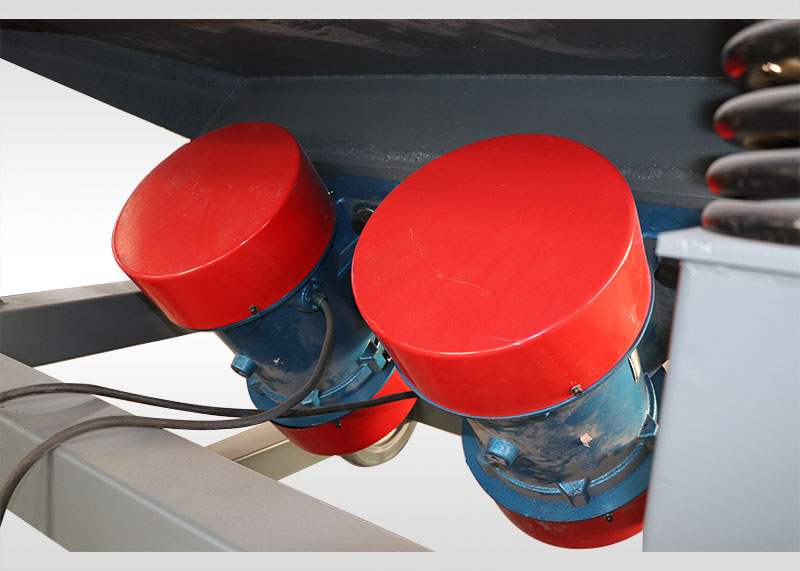

YZU series vertical vibrating source three-phase asynchronous motor is the general excitation source of all kinds of vibration machines. With its excellent performance, it is widely used in coal, metallurgy, electricity, grain, chemical industry, foundry, cement, port, medicine, food processing and other industries, such as vibrating feeder, vibrating sieve, vibration shakeout machine, vibration drawing machine, silos and other mechanical equipment.
Technical Specification:
· Output Range: 0.55KW~11KW
· Voltage: 415V/380V/660V/as required
· Frequency: 50Hz/60Hz/as required
· No. of Poles: 2, 4, 6, 8, 10, etc
· Speed: 450rpm~3000rpm
· Protection class: IP44, IP54, IP55, etc.
· Insulation class: B or F
· Duty type: S1
· Cooling method: IC0041
· Connection: Y/D
· Mounting style: B3
· Altitude: less than 1000m
· Working temperature:-15℃~40℃
Main feature:
1.Small volume,light weight,rapid start.
2.Low noise,low power construction,high efficiency.
3.Easy installation,easy maintenance,long service life.

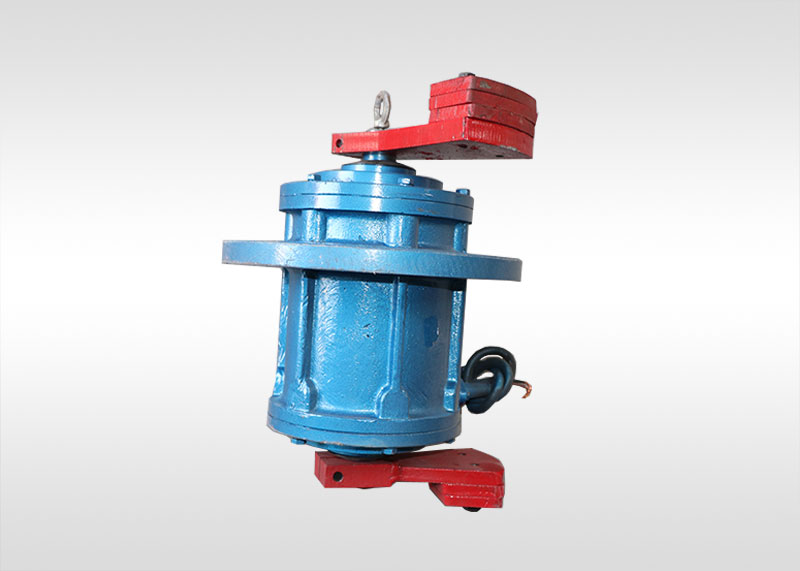

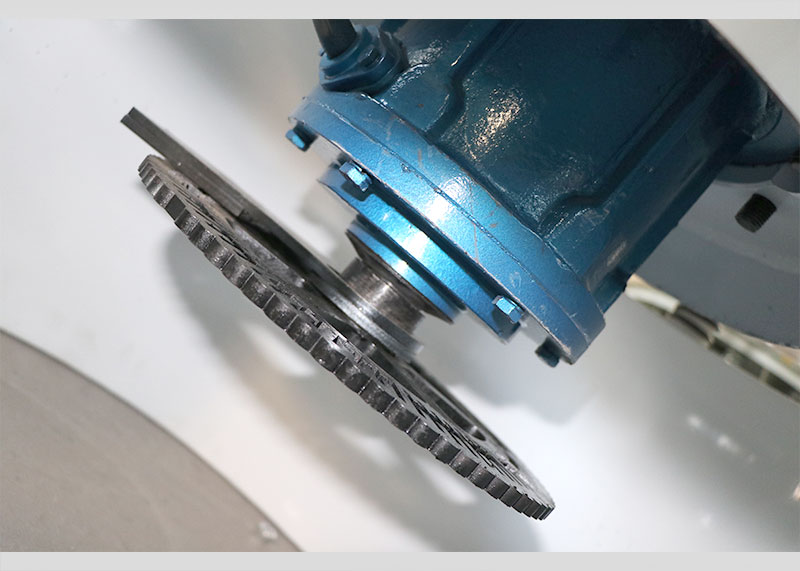

4.Easy to adjust the Angle of eccentric block and adjustment of vibration force.
5.Fully enclosed structure can work in any kind of explosion-proof requirements under the condition of the dust.
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
4.Provide assembly instruction,technical date and related soft copies or video to ensure customer could install and debug by themselves.
