Product Description:

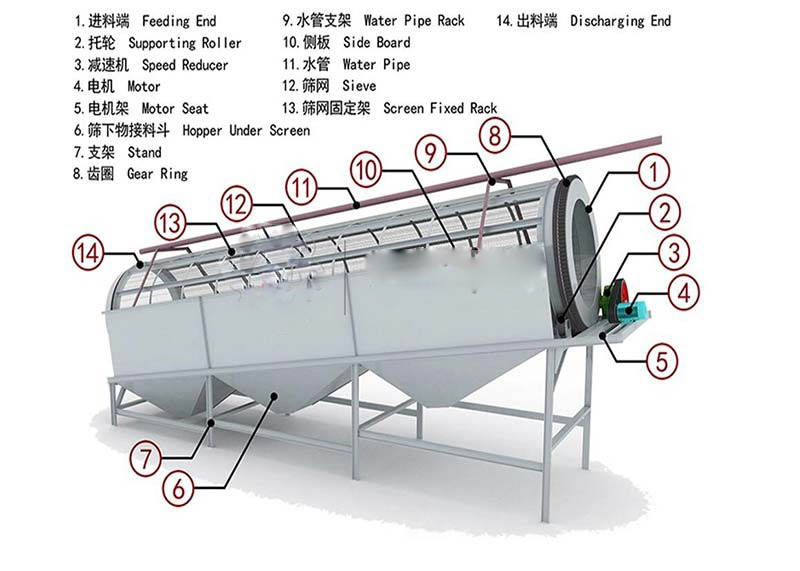

The drum screen is mainly composed of a motor, a reducer, a drum device, a frame, a sealing cover, and an inlet and outlet.
Working principle :
The roller device is installed obliquely on the frame. The motor is connected with the roller device through the speed reducer through a coupling, and drives the roller device to rotate around its axis. When the material enters the roller device, due to the tilt and rotation of the roller device, the material on the screen surface is turned and rolled, so that the qualified material (under-screen product) is discharged through the outlet at the bottom of the rear end of the roller, and the unqualified material (screen Upper product) is discharged through the discharge port at the rear of the drum. Due to the turning and rolling of the materials in the drum, the materials stuck in the screen holes can be ejected to prevent the screen holes from being blocked.
Features :
1.Sieve holes are not easily blocked.
2.Smooth operation and low noise.
3.The structure is simple and the maintenance is convenient.

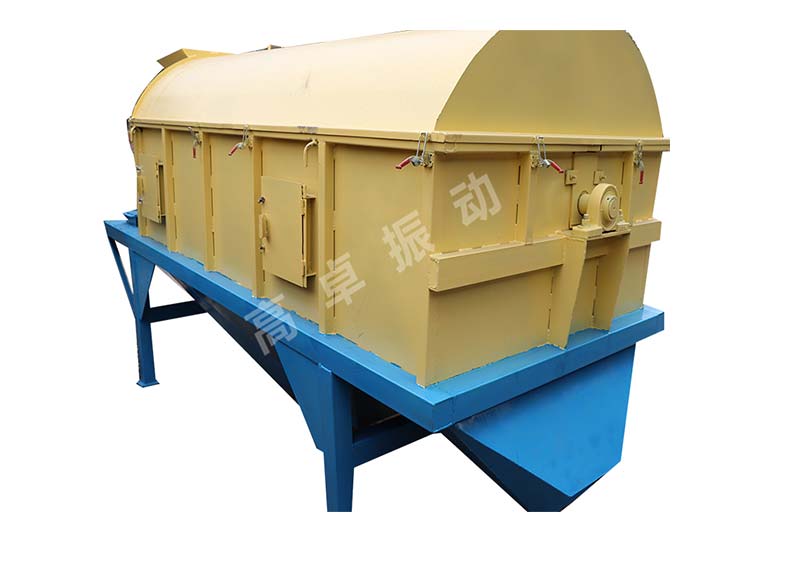

4.The sieving cylinder can be closed, which is easy to collect dust.
5.The whole machine has high reliability and less one-time investment.
6.Special screen is adopted, which has high screening efficiency and long service life.
Application:
1. Used for grading large and small stones in stone yard, and separating soil and stone powder.
2. Used in sand and stone yard to separate from sand and stone.
3. The coal industry is used for the separation of lump coal and coal powder and coal washing (components of coal washing machinery)
4. The chemical industry and the mineral processing industry are used to classify large and small lumps and separate powdery substances.
Technical parameter :
|
Model |
Sieve pore(MM) |
Max feeding size(mm) |
Rotary speed |
Motor Power(Kw) |
|
GTS820 |
2-20 |
Mesh size*2.5 |
32 |
3 |
|
GTS830 |
2-20 |
Mesh size*2.5 |
32 |
3 |
|
GTS1030 |
2-20 |
Mesh size*2.5 |
25 |
4 |
|
GTS1040 |
2-20 |
Mesh size*2.5 |
25 |
4 |
|
GTS1240 |
2-20 |
Mesh size*2.5 |
20 |
5.5 |
|
GTS1250 |
2-20 |
Mesh size*2.5 |
20 |
5.5 |
