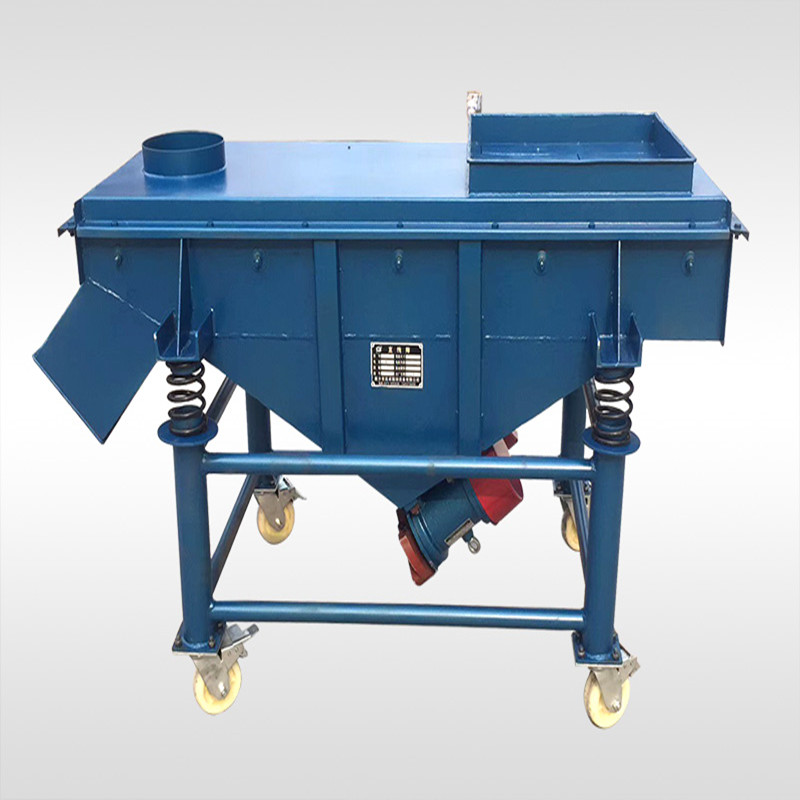

The linear vibrating screen equipment uses the vibration motor excitation as the source of vibration power, so that the material is thrown on the screen and moves forward linearly. Several kinds of oversize and undersize products are produced and discharged from their respective outlets. It has low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust overflow, automatic discharge, more suitable for assembly line operations.

First,There are two kinds of grids for linear vibrating screens: wooden and steel. Wooden grids are easy to change. However, wooden grids are easy to break, so check them frequently. The output of the linear vibrating screen is large, so the loss of the screen and the loss of the bouncing ball are also relatively large, and they need to be checked frequently.

Second ,The problems found during the regular inspection of the linear vibrating screen should be repaired. The repair contents of the vibrating screen include timely adjustment of the tension of the triangle belt, replacement of the new belt, replacement of the worn screen surface and longitudinal pads, replacement of the damping spring, replacement of the rolling bearings, transmission gears and seals, replacement of the damaged bolts, repair of the damaged frame members .

Third ,The side plates and beams of the screen frame should avoid stress concentration, so the vibration screen is not allowed to be welded on these components. The vibrating screen should be replaced in time for cracking of the lower beam. When the side plate is found to be damaged by cracking, a 5mm hole should be drilled in time at the end of the crack, and then the reinforcing plate should be added at the cracking position. Disassembly, repair and assembly of the exciter should be carried out by a dedicated person in a clean place.

Finally ,After disassembling the vibrating screen, check the wear of the rolling bearings, the vibrating screen to check the gear tooth surface, the vibrating screen to check the connection of various components, the vibrating screen to clean the lubrication circuit in the box to make it smooth, the vibrating screen to remove the adhesion on each joint surface Replace all seals and other damaged parts.

Pay attention to the following points when repairing Linear  vibrating screen:
