Description:

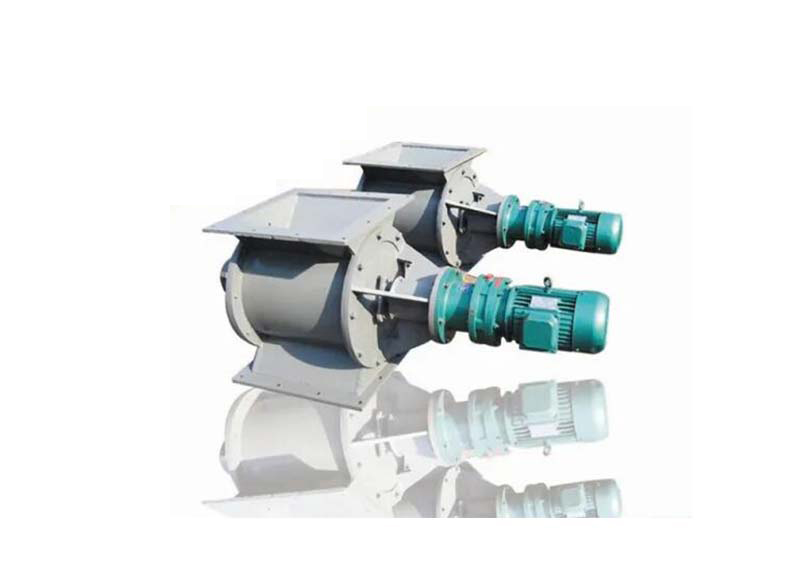

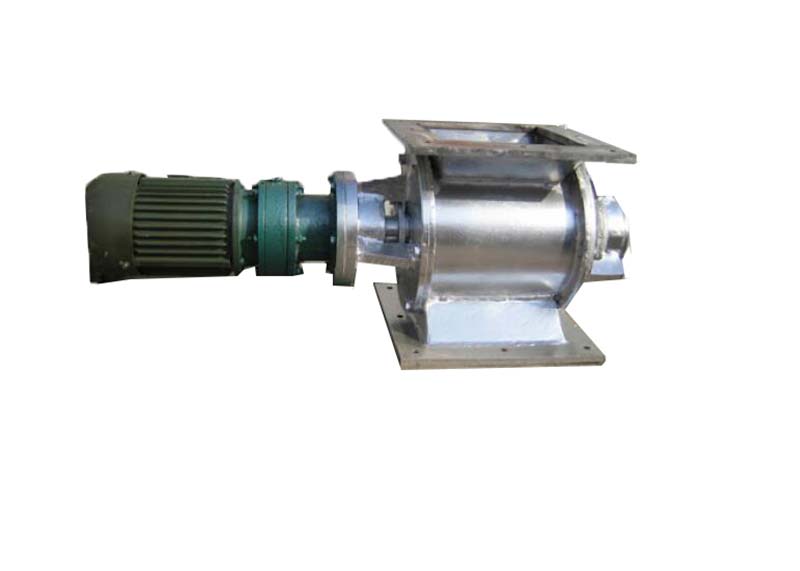

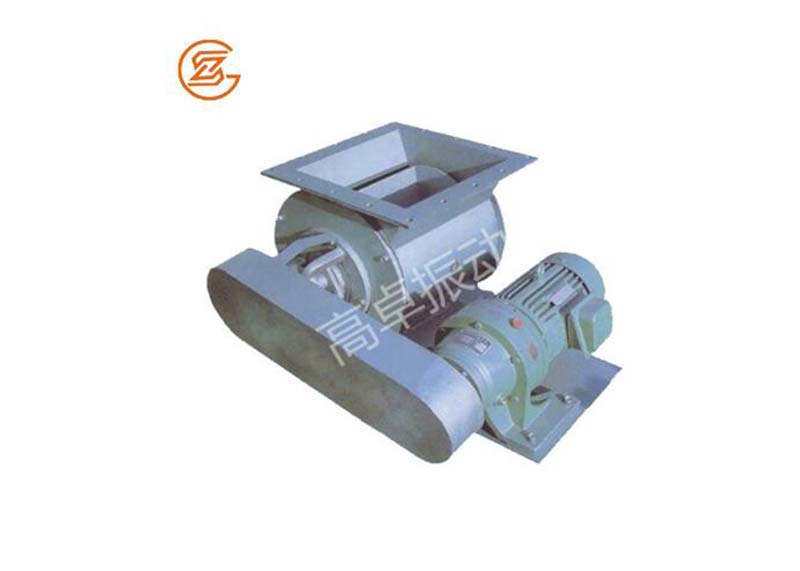

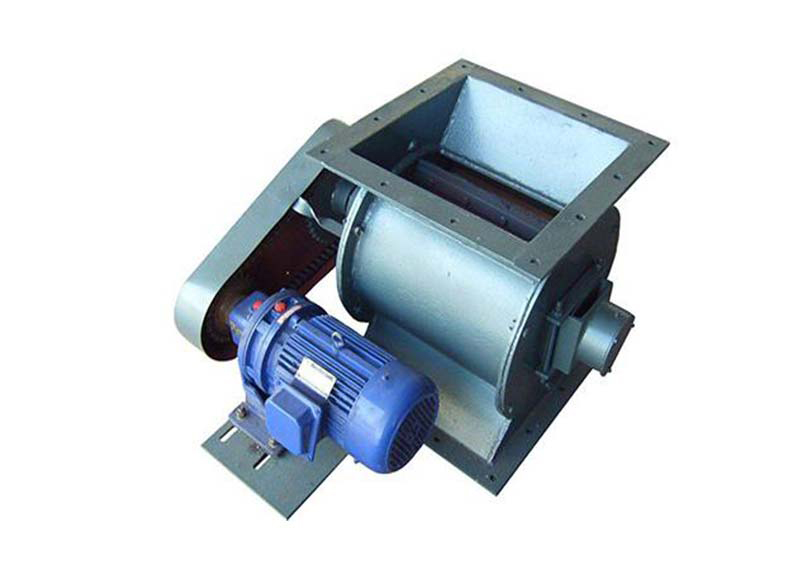

The impeller feeder is a relatively advanced unloader device, which absorbs the advantages of other unloading equipment. It is mainly used for uniform and continuous batching, transportation, and unloading in mechanized and automatic control systems. The impeller feeder has many characteristics such as small size, light weight, strong production capacity, convenient maintenance and use. It is an ideal equipment for conveying and controlling coal powder, cement, raw clinker,
grains and other materials.
Working principle:
The working principle of the impeller feeder is to drive the active drive shaft and the blade to rotate together through the driving device, and the material flows into the discharge port from the upper part along with the rotation of the blade to achieve the purpose of discharging.
Features:
1 Compact structure, beautiful appearance, easy to use.
2. Smooth operation and low noise.
3. Due to the distance between the bearing and the gear box from the housing, the high temperature and lubrication are greatly improved.
4. The factory can also design and manufacture according to user requirements. (Bracket coupling belt chain drive)
5. This product uses the special grease for No. 00 reducer, please check it regularly and add oil.
Technical parameters
|
Model |
Cpacity (m3/h} |
Vane rotating speed(r/min) |
Feeding size |
Motor model |
Motor power(KW) |
|
HGY-200*200 |
7 |
34 |
200*200 |
BLY-18-43 |
1.1 |
|
HGY-200*300 |
10 |
34 |
200*300 |
BLY-18-43 |
1.1
|
|
HGY-300*300 |
23 |
34 |
300*300 |
BLY-18-43 |
1.1 |
|
HGY-300*400 |
31 |
34 |
300*400 |
BLY-18-43 |
1.5 |
|
HGY-400*400 |
53 |
34 |
400*400 |
BLY22-43 |
3 |
|
HGY-400*450 |
67 |
34 |
400*450 |
BLY22-43 |
3 |
FAQ:
1.How about your machine quality ?
A.We have own research and development team ,rich experiences technicicans ,and professional workers .We pay attention to every detail in manufacturing to ensure machines with high quality .
2.How can i contact you
A. Please look at my contact card .You can talk to me anytime .Or send me enquiry email ,i'll reply you in 24 hours and offer the optimum solution to you .
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
