Description:

The impact crusher is also called impact crusher. It is mainly used for metallurgy, chemical industry, building materials, hydropower and other materials that often need to be relocated, especially for fluid stone materials such as highways, railways, hydropower projects, etc. The types, scales and requirements of finished materials are different in various configurations

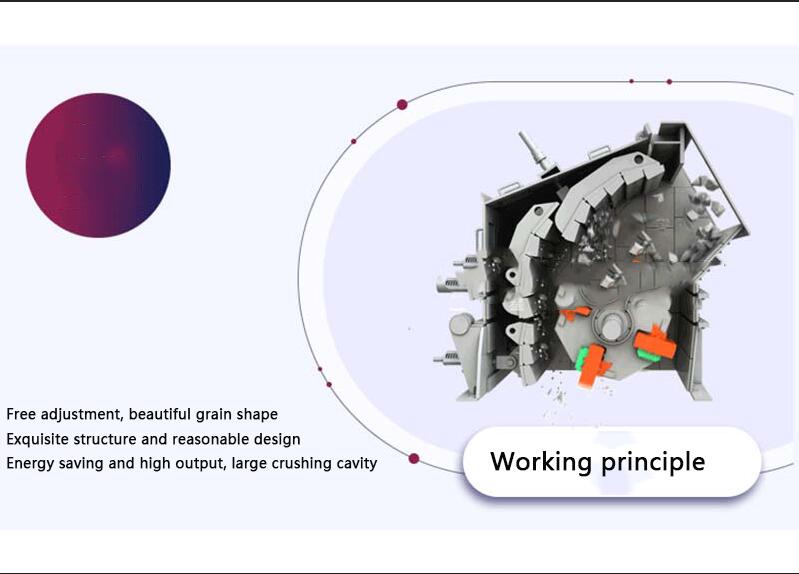

Working principle:

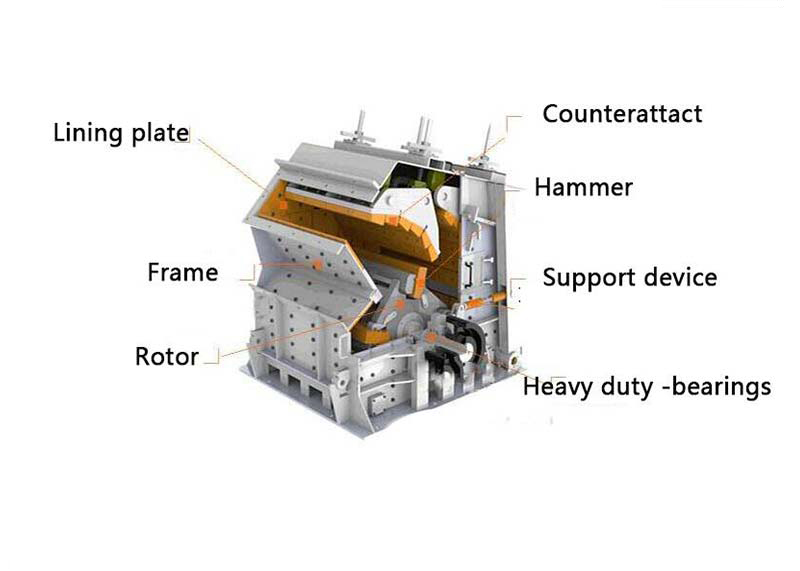

The impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of ​​the hammer, it strikes and breaks with the hammer on the rotor, and then is thrown to the counterattack device to be broken again, and then rebounded from the counterattack liner. Return to the impact area of ​​the hammer to re-crush. This process is repeated. The materials enter the first, second and third counterattack chambers from large to small and are repeatedly crushed until the material is crushed to the required particle size and discharged from the discharge port.

Features :

Application:

Technical parameter:

Model:	WIDTH	LENGTH	CLOSE SIDE SETTING	CAPACITY(t/h)	Powder
PE-800*1100	800	1100	90-220	140-320	110-132
PE-900*1200	900	1200	95-240	160-450	110-160
PE-1200*1500	1200	1500	150-300	430-880	160-250
PE-1400*1800	1400	1800	50-120	500-1100	250-315
PE-500*750	500	750	75-180	50-150	55
