Description :
Jaw crusher is also known as jaw crusher, which is called jaw crusher for short. It is mainly used for crushing medium-sized particles of various ores and bulk materials. It is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industries. The highest compressive strength of the crushed material is 320MPa. The performance characteristics are large crushing ratio, uniform product size, simple structure, reliable performance, easy maintenance, and low operating cost.
Features:
1. The crushing cavity is deep and has no dead zone, which improves the feeding capacity and output.
2. The crushing ratio is large and the product size is uniform.
3. The pad-type discharge opening adjustment device is reliable and convenient, and has a large adjustment range, which increases the flexibility of the equipment.
4. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.
5. The structure is simple, the work is reliable, and the operating cost is low.
6. Equipment energy saving: stand-alone energy saving is 15% to 30%, and system energy saving is more than doubled.
7. The adjustment range of the discharge port is wide, which can meet the requirements of different users.
8. Low noise and less dust
Application:

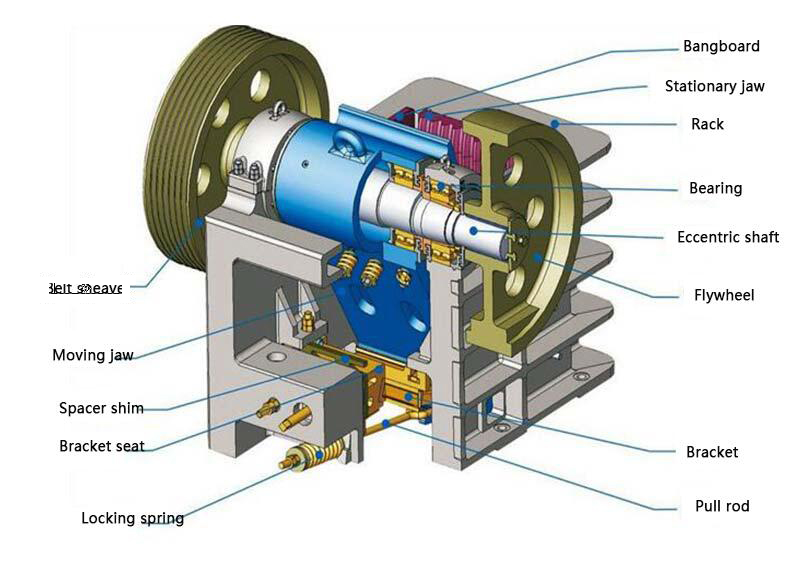

Working principle:
Technical parameters:
|
Model no. |
Inlet size(mm) |
MAX feed |
Capacity(kg/h) |
Power(kw) |
|
PE-250*400 |
250*400 |
210 |
3-13 |
15 |
|
PE-400*600 |
400*600 |
340 |
10-35 |
30 |
|
PE-500*750 |
500*750 |
425 |
25-60 |
55 |
|
PE-600*900 |
600*900 |
500 |
30-85 |
55-75 |
|
PE-750*1060 |
750/1060 |
630 |
72-150 |
90-100 |
