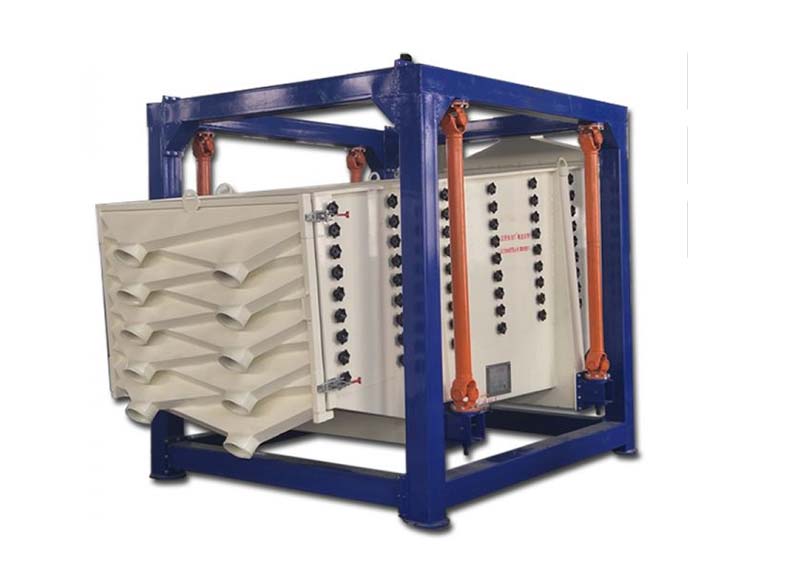

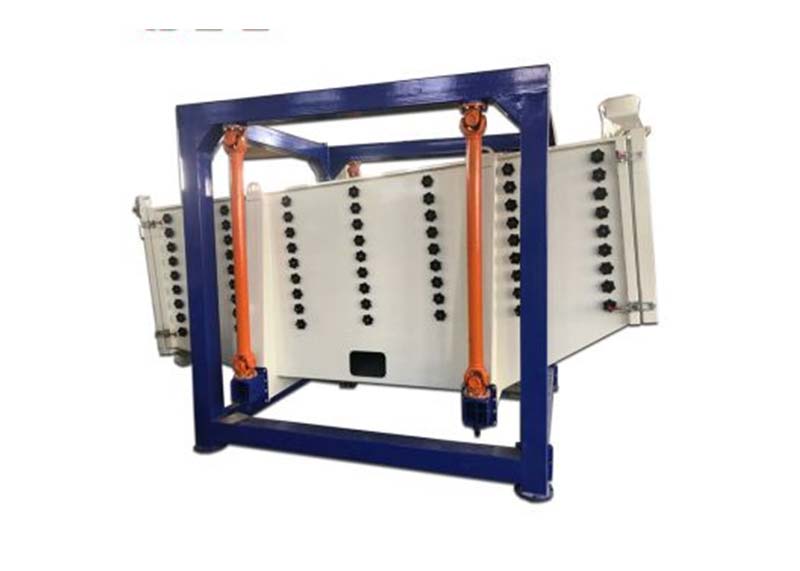

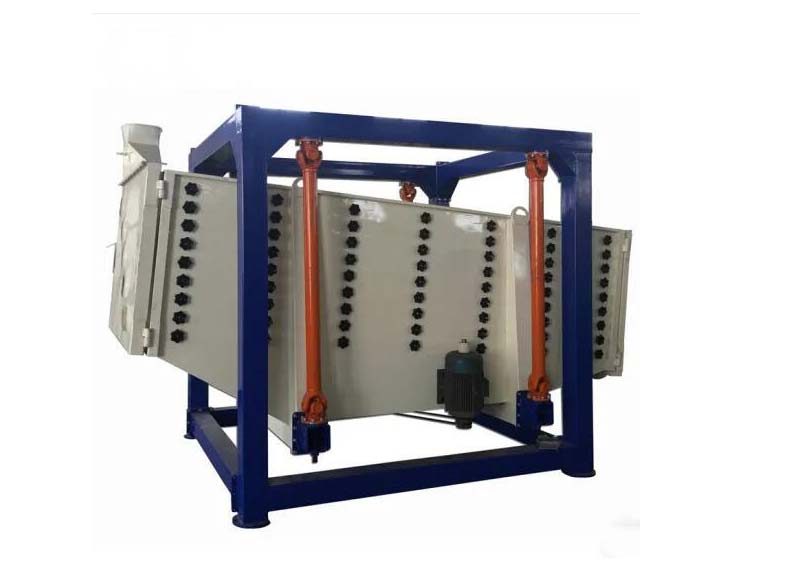

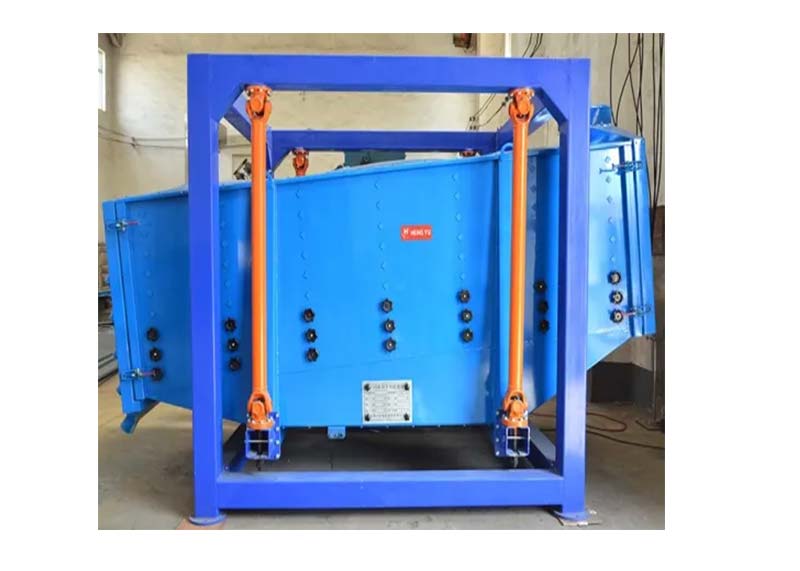

Square Swing Tumbler Vibrating Screen
Description of square swing screen
The square swing screen is a high-efficiency screening equipment with high precision and large output. It has excellent self-cleaning effect, high utilization rate of screen and long life, and good sealing effect.
Working principle of square swing screen:

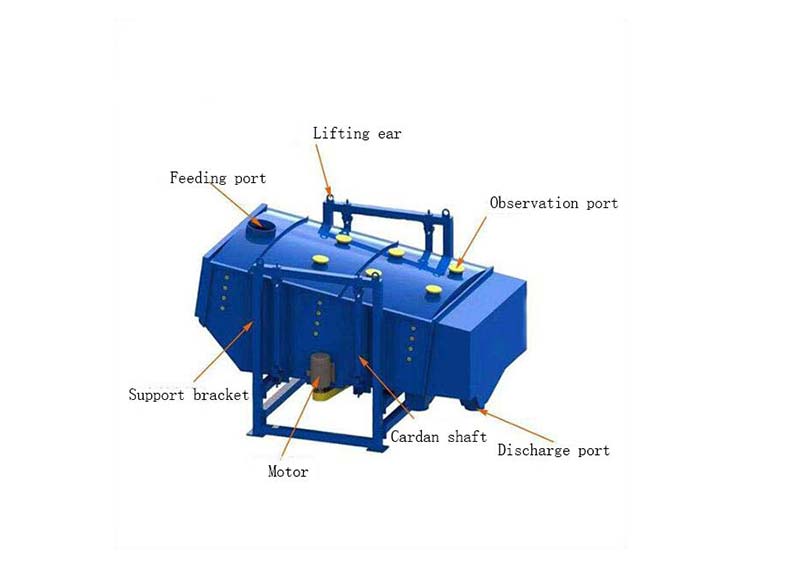

From the perspective of the trajectory of the sieve body, that is, the sieve movement of the sieve box, the square type swing screen is also called the reciprocating screen. The vibration force generated by the driving device is an inertial force that changes in a certain direction around the axis and the direction is eccentric. The reciprocating inertial force formed by the rotation of the fixed axis.
According to the structural characteristics and working principle of the square swing screen, the screen surface is generally horizontal or slightly inclined (inclination angle is 0°~5°). The working principle of the square swing screen is that after the sieve machine is started, the sieve shaker, that is, the sieve box, reciprocates back and forth under the action of inertial force, and the sieve box drives the sieve surface to periodically shake, so that the material on the sieve surface is matched with the sieve box. The plane rotary motion is used together. During this period, the material smaller than the aperture of the sieve surface falls through the sieve hole to the lower layer, and becomes the undersize material. The material larger than the aperture of the sieve surface is discharged from the discharge opening after continuous rolling and jumping movement, and finally the screening work is completed.
Features of square swing screen:
1.The full reciprocating motion makes the material can quickly spread the whole screen, and makes better use of screen.
2.Strong structure, continuous operation and low failure rate.
3.Use the bouncing ball to effectively clean the mesh. The effect of anti-blocking is good.
4.The horizontal amplitude is large enough to improve the sieving effect of near-size particles effectively.
5.Forward stretch material discharging, easy to collect. Easy to replace screen, only 5 minutes.
Application of square swing screen:

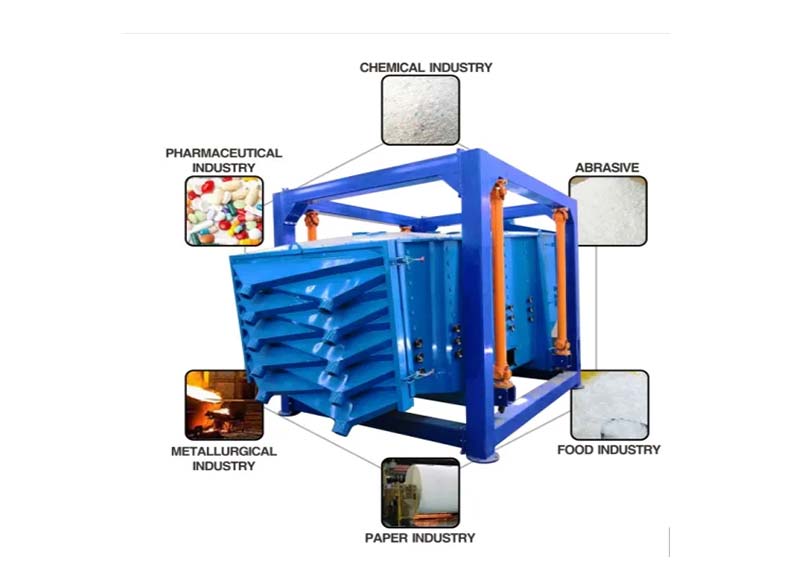

Widely used in chemical and new materials, metallurgy, metal powder, mineral powder, food, salt, sugar, abrasives, feed and other industries. The rotary motion of the exciter is transmitted to the screen surface through the square rotary screen, so that the material is rapidly dispersed in the front part of the sieve machine, thereby achieving efficient screening.
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
4.Provide assembly instruction,technical date and related soft copies or video to ensure customer could install and debug by themselves.
