What vibrating screen effect is good to choose Xanthan gum
Gaozhuo Click 01-04-2020
What vibrating screen effect is good to choose Xanthan gum ?
The following is to introduce an efficient screening of xanthan gum screening machine:

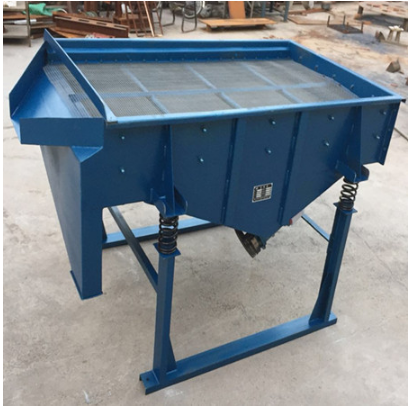

The linear vibrating screen is driven by a double shaker. When the two shakers do synchronous and reverse rotation, the excitation force generated by its eccentric block cancels each other in the direction parallel to the motor axis, and is stacked as a resultant force in the direction perpendicular to the motor axis. Therefore, the motion track of the screen machine is a straight line. The two motor axes have an inclination Angle relative to the screen surface. Under the combined action of excitation force and material from gravity, the material is thrown up on the screen surface and makes a straight movement forward by jumping, so as to achieve the purpose of screening and grading the material. Can be used in the pipeline to achieve automation. It has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance and no dust spilt in completely closed structure. The number of high screening mesh is 400 mesh, and 7 kinds of material with different particle size can be screened. Xinxiang gaozhuo production of linear vibrating screen can meet 24 tons of xanthan gum per day, 1230, 1224 these two types of linear vibrating screen can meet the requirements.
1230 linear vibrating screen (3000mm wide *1200mm long), motor power: 2x1.1kw. The daily screening output is about 10-15 tons.
Model 1224 linear vibrating screen (2400mm wide x1200mm long), motor power: 2x0.75kw. The daily screening output is about 5-10 tons.
